Remove/Install Cover Above Air Nozzle On Driver's Side - AR68.10-S-1080E

Model 447, 448

Shown On model 447.8 Except Code XM7 (facelift II)

Courtesy of MERCEDES-BENZ USA

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment		AH00.00-Z-0300-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Remove speaker cover.		AR68.10-S-1050E

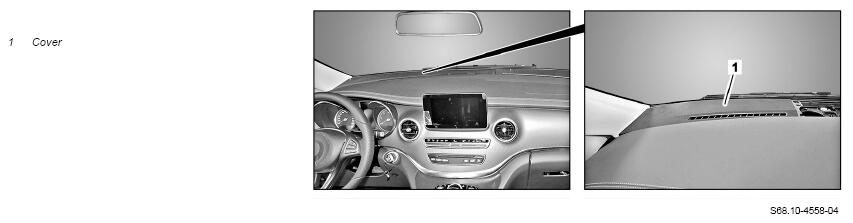

2	Remove cover (1).	To do so, place the long wedge between the instrument panel and cover (1). Check the retaining clamps for damage.
		Long wedge If damage is present: ↓ Replace cover (1).	Fig 1
3	Determine the position of the adhesive label for the vehicle identification number.	Model 448 When the cover (1) is being replaced.
4	Remove the adhesive label for the vehicle identification number.	Model 448 If cover (1) is replaced. The adhesive label can be reused. Observe assembly position.
5	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
