Remove/Install Center Console - AR68.20-S-2000EH
Model 447
With Code F1O (Center console with stowage compartment and cup holder med. version)
Except Code FF1 (Centre console with stowage compartment)
Except Code FF2 (Centre console with 1-DIN aperture)
Except Code FG0 (Deluxe center console with roller shutter door)
Except Code FG6 (Center console with cooling compartment)
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with engine 780 | AH00.00-Z-0300-01A |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

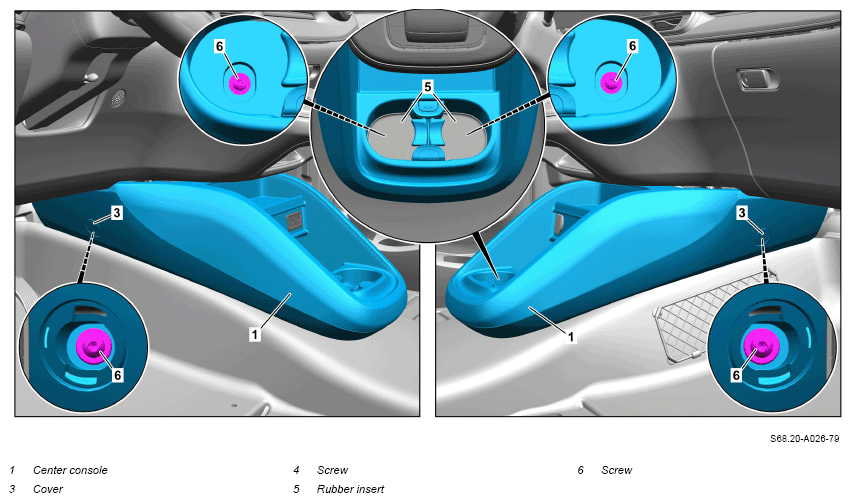

| 2 | Remove the covers (3) on the center console (1). | ||
| 3 | Remove screws (4). | ||
| 4 | Remove screws (6). | ||

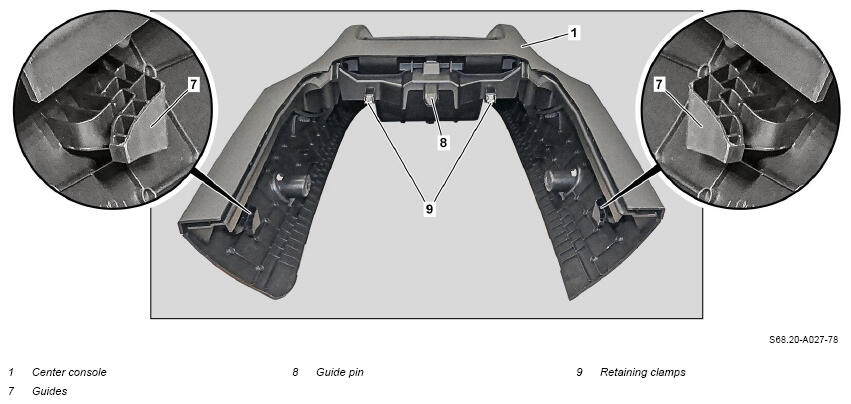

| 5 | Remove center console (1). | Ensure that the guide pin (8) is seated correctly. Check the retaining clamps (9) for damage. If damage is present: ↓ Replace damaged retaining clips (9). |
|
| 6 | Install in the reverse order. | ||
| Check | |||

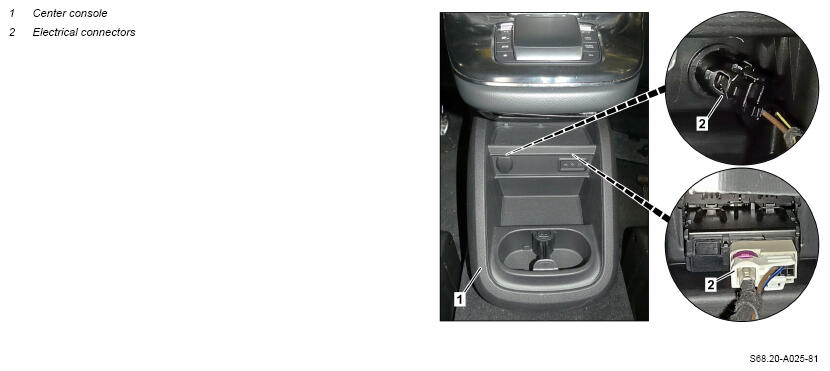

| 7 | Check the electrical consumers in the center console (1) to ensure that they function properly. |
