Remove/Install Instrument Cluster - AR54.30-S-6015EH

Model 447.6/7, 448.7

With Code XM7 (MOPF II)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447.6/7 with Motor 780	AH00.00-Z-0300-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Buffer basic data of the instrument cluster (1) in the diagnostic system.	When replacing instrument cluster (1).
		Transfer buffered data to instrument cluster (1). Remove diagnostic device.	AD00.00-S-2000-04E
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
3	Move steering wheel to rear and down.
4	Remove trim from instrument cluster (1).	Do not completely remove trim.	AR68.10-S-1551E

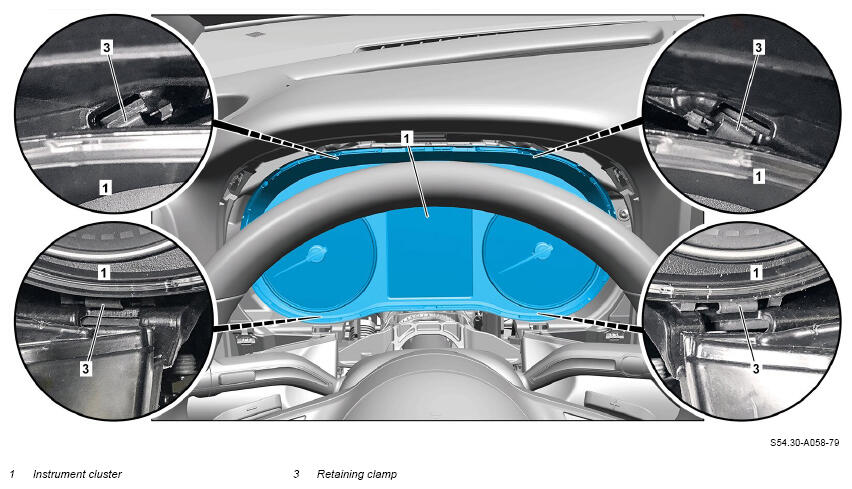

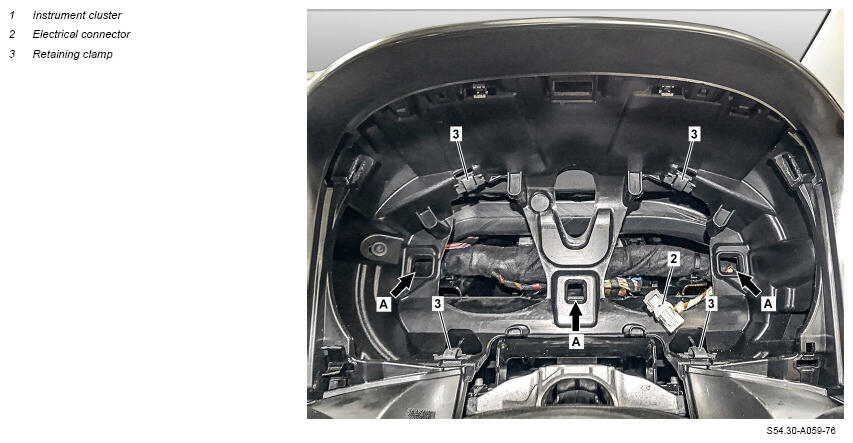

5	Remove instrument cluster (1).	To do so, remove instrument cluster (1) from retaining clamps (3) and pull toward rear until electrical connector (2) is accessible. Ensure that guides of instrument cluster (1) are seated correctly in openings (arrows A). Check retaining clamps (3) for damage. If damage is found, ↓ Replace damaged retaining clamps (3).

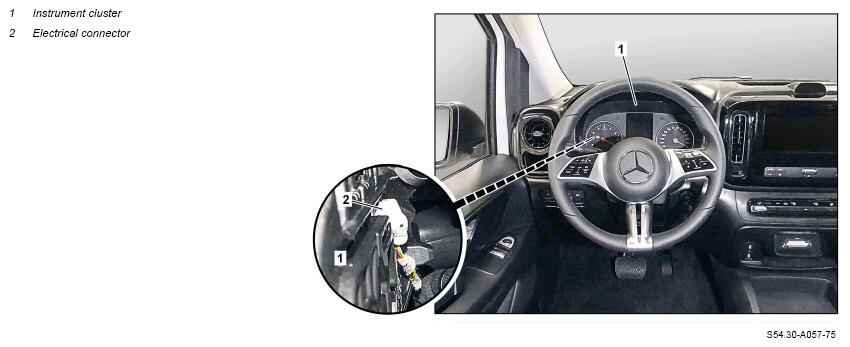

6	Remove instrument cluster (1).	For this purpose, release and disconnect electrical connector (2).
7	Install in the reverse order.
	Check
8	Carry out function test of instrument cluster (1).
