Remove/Install Front A/C Operating Unit - AR83.30-S-6631EH

Model 447 With Code HH4 (THERMOTRONIC automatic climate control) With Code XM7 (MOPF II)

Model 447 With Code HH9 (Air conditioner, automatic heater control) With Code XM7 (MOPF II)

Model 448 With Code XM7 (MOPF II)

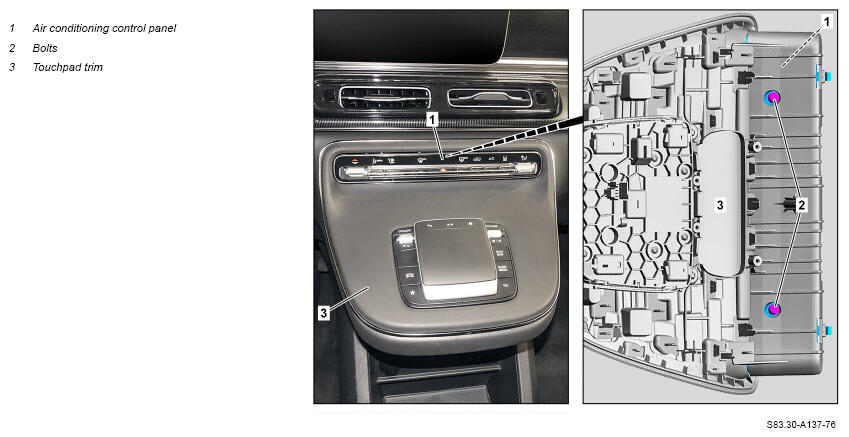

Shown On Model 447.8

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

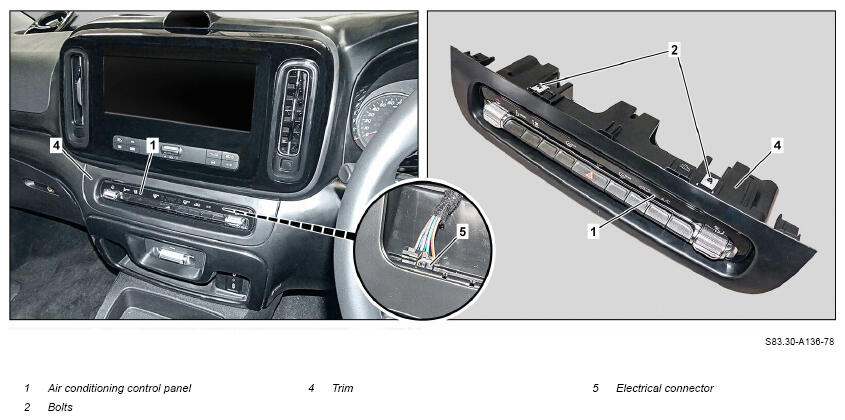

Shown On Model 447.7

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2.1	Remove touchpad trim (3) with touchpad.	Model 447.8, model 448.8 with code E1T (Touchpad)	AR54.21-S-0503EH
2.2	Remove trim (4).	MODEL 447.6/7, MODEL 448.7 To do so, remove retaining clips and pull trim (4) out until electrical connector (5) is accessible. Check retaining clips for damage.
		Long wedge If damage is present, ↓ Replace damaged retaining clips.	Fig 1
3	Remove trim (4).	MODEL 447.6/7, MODEL 448.7 To do so, release and disconnect electrical connector (5).
4	Remove air conditioning control panel (1).	To do this, remove screws (2).
5	Remove air conditioning control panel (1).	Model 447.8, model 448.8 with code E1T (Touchpad) To do so, unclip air conditioning control panel (1) from touchpad trim (3). MODEL 447.6/7, MODEL 448.7 To do so, unclip air conditioning control panel (1) from trim (4). Make sure that the air conditioning control panel (1) is seated correctly.
6	Install in the reverse order.
	Check
7	Perform function test of air conditioning control panel (1).

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
