Remove/Install Lower Center Cover For Instrument Panel - AR68.10-S-1498EH

Model 447.6/7, 448.7

With Code XM7 (MOPF II)

Courtesy of MERCEDES-BENZ USA

Shown On model 447.7 With Code G43 (9G-TRONIC) and With Code CA4 (AIRMATIC)

Courtesy of MERCEDES-BENZ USA

Shown On model 447.7 With Code GE1 (6-speed manual transmission TSG 380)

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447.6/7 with engine 780	AH00.00-Z-0300-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install

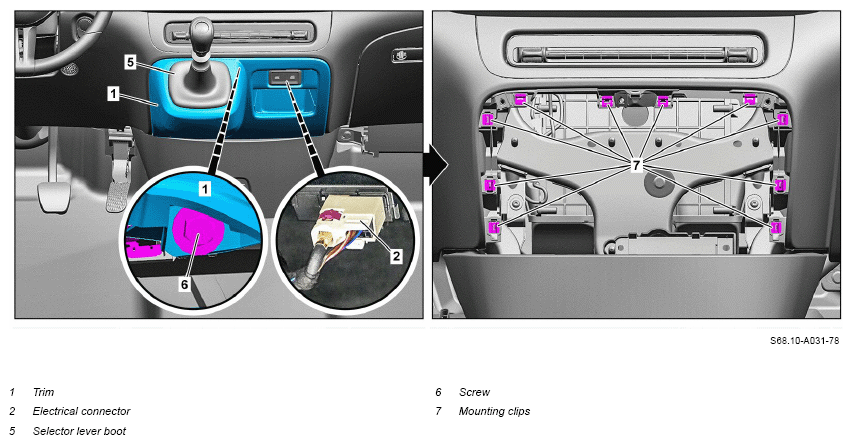

1	Remove the selector lever boot (5) from the trim (1).	Model 447.6/7 with code GE1 (6-speed manual transmission TSG 380) To do so, remove the retaining clips for the selector lever boot (5). Check retaining clips for damage.
		Long wedge If damage is present: ↓ Replace the selector lever boot (5).	Fig 1
2	Unscrew screw (6).	Model 447.6/7 with code GE1 (6-speed manual transmission TSG 380)

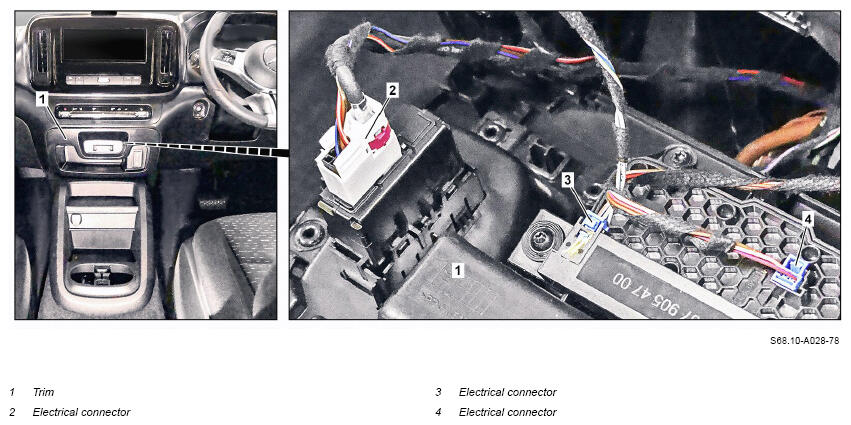

3	Remove trim (1).	To do so, remove the retaining clips (7) and pull the trim (1) forward until the electrical connectors (2, 3, 4) are accessible. Check retaining clips (7) for damage. Make sure that the trim (1) is seated correctly.
		Long wedge If damage is present: ↓ Replace damaged retaining clip (7).	Fig 1
4	Remove trim (1).	Model 447.6/7, 448.7 with code XM7 (MOPF II) except code CA4 (AIRMATIC) For this purpose, release and disconnect electrical connector (2). Model 447.6/7, 448.7 with code CA4 (AIRMATIC) To do so, release and disconnect the electrical connectors (2, 3, 4).
5	Install in the reverse order.
	Check
6	Test the function of the USB port.
7	Test the function of the KEYLESS-GO antenna.
8	Test the function of the vehicle dynamics switch.	Model 447.6/7, 448.7 with code CA4 (AIRMATIC)

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
