Remove/Install Center Console - AR68.20-S-2000E
Model 447
With Code FF1 (Centre console with stowage compartment)
Except Code F1O (Center console with stowage compartment and cup holder med. version)
Except Code FG0 (Deluxe center console with roller shutter door)
Except Code FG6 (Center console with cooling compartment)
Model 447
With Code FF2 (Centre console with 1-DIN aperture)
Except Code F1O (Center console with stowage compartment and cup holder med. version)
Except Code FG0 (Deluxe center console with roller shutter door)
Except Code FG6 (Center console with cooling compartment)
Model 448.7
With Code FF1 (Centre console with stowage compartment)
Except Code FG0 (Deluxe center console with roller shutter door)
Except Code FG6 (Center console with cooling compartment)

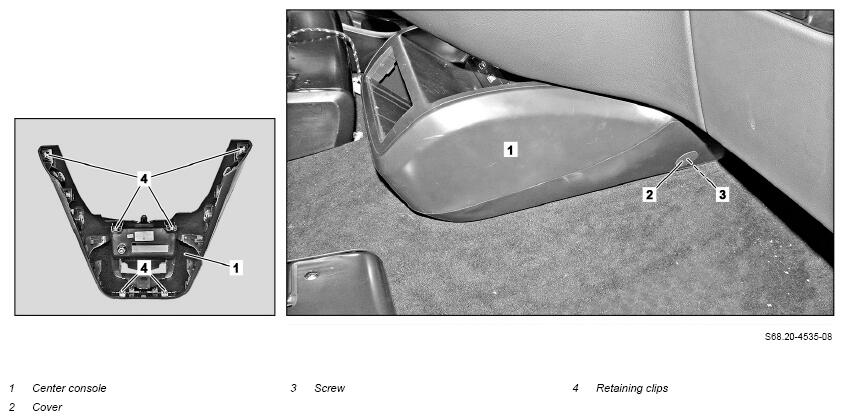

Shown On model 447 With Code FF2 (Center console in 1 device installation frame)
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Remove multimedia connection unit | Model 447.8 | AR82.60-S-1032E |
| 2 | Remove cover (2) on left and right side of center console (1) | ||
| 3 | Remove screw (3) on left and right side of center console (1) | ||
| 4 | Disconnect electrical connector from cigarette lighter | Model 447 with code V85 (Smoker package) | |
| 5 | Unclip center console (1) in direction of passenger compartment and remove | ||
| 6 | Install in the reverse order. |
