Remove/Install Interior Temperature Sensor - AR83.30-S-8091E

Model 447 With Code HH4 (THERMOTRONIC automatic climate control)

Model 447 With Code HH9 (Air conditioner, automatic heater control)

Model 448

Shown On Model 447.8 Except Code XM7 (Facelift II)

Fig 1: Interior Temperature Sensor Components Location - Model 447 With Code HH4, HH9 (Shown On Model 447.8 Except Code XM7)

Courtesy of MERCEDES-BENZ USA

Shown On Model 447.8 With Code XM7 (Facelift II)

Courtesy of MERCEDES-BENZ USA

Shown On Model 447.8 With Code XM7 (Facelift II) with instrument panel removed

Courtesy of MERCEDES-BENZ USA

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Remove driver's side cover under instrument panel.	Model 447.6/7 with code LC7 (Front footwell illumination), model 447.8, 448	AR68.10-S-1500E
2	Unhook driver's side air duct segment in footwell from instrument panel.	Model 447 except code ME0 (Electric motor 85 kW), model 448 Do not completely remove air duct segment.

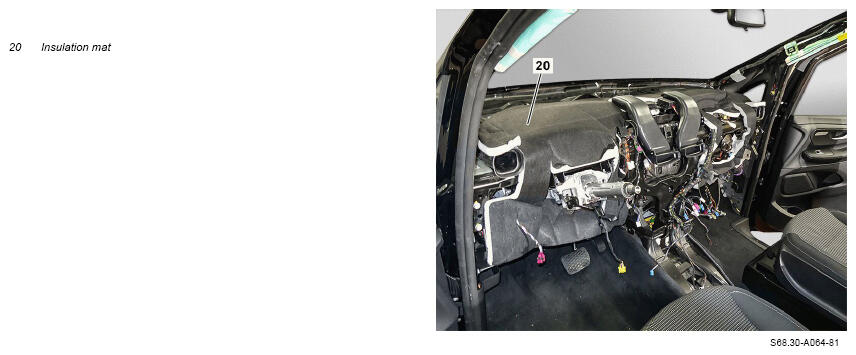

3	Push insulation mat (20) slightly to one side in area of interior temperature sensor (1).	Model 447.8, 448.8 except code XM7 (Facelift II)

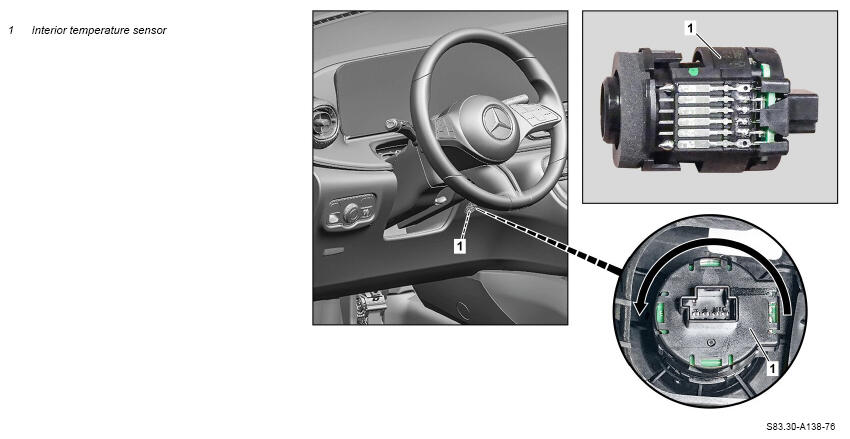

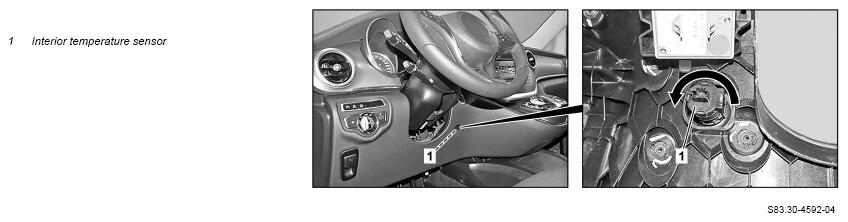

4	Remove interior temperature sensor (1).	To do so, turn interior temperature sensor (1) by approx. 45° in direction of arrow.
5	Remove interior temperature sensor (1).	To do so, release and disconnect electrical connector.
6	Install in the reverse order.
	Check
7	Run function test of air conditioning system.
