Remove/Install Radio Display - AR82.60-S-7722EI
Model 447.6/7, 448.7 With Code XM7 (MOPF II)
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447.6/7 with engine 780 | AH00.00-Z-0300-01A |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Commission radio display control unit (1). | If radio display (1) is replaced. | |
| AD00.00-S-2000-04E | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove center air vents (5). | AR83.10-S-4742EH | |
| 4 | Tighten screws (6). | ||

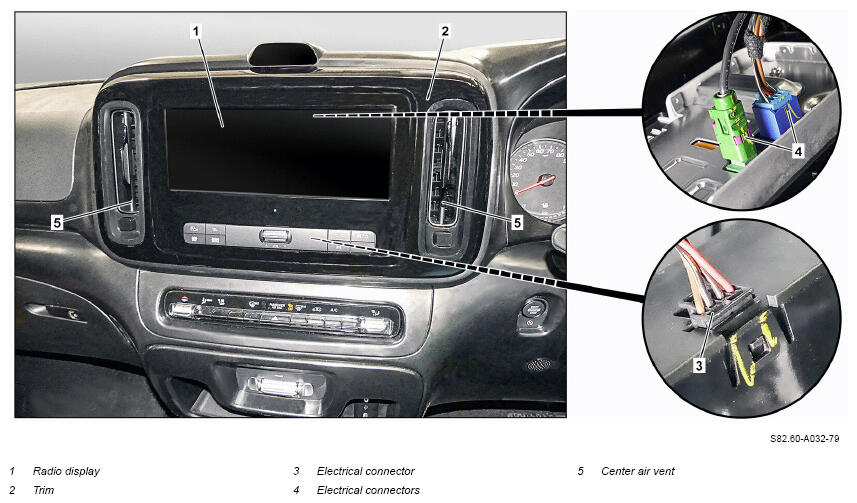

| 5 | Remove radio display (1) with trim (2). | ||
If damage is present, ↓ Replace damaged retaining clips. |

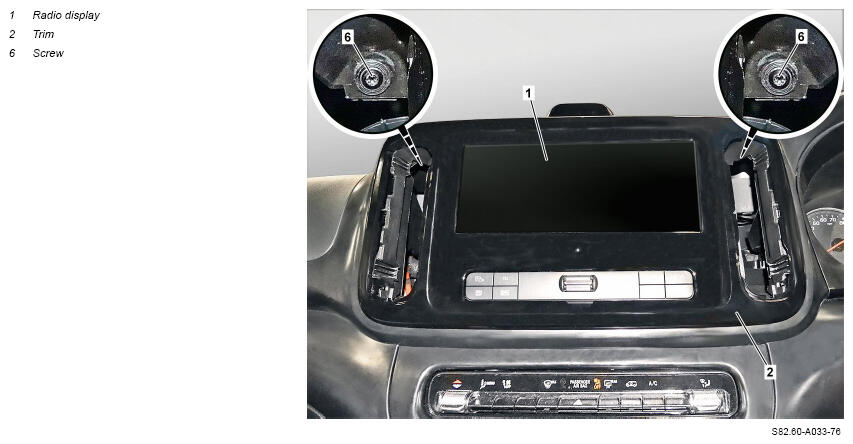

Fig 1 | ||
| 6 | Remove radio display (1) with trim (2). | ||
| 7 | Install in the reverse order. | ||
| Check | |||
| 8 | Perform function check of radio display (1). | ||
| 9 | Remove diagnostic system. | If radio display (1) was replaced. |
