Remove/Install Start/Stop Button - AR80.57-S-4801EH
Model 447, 448
with code XM7 (MOPF II)

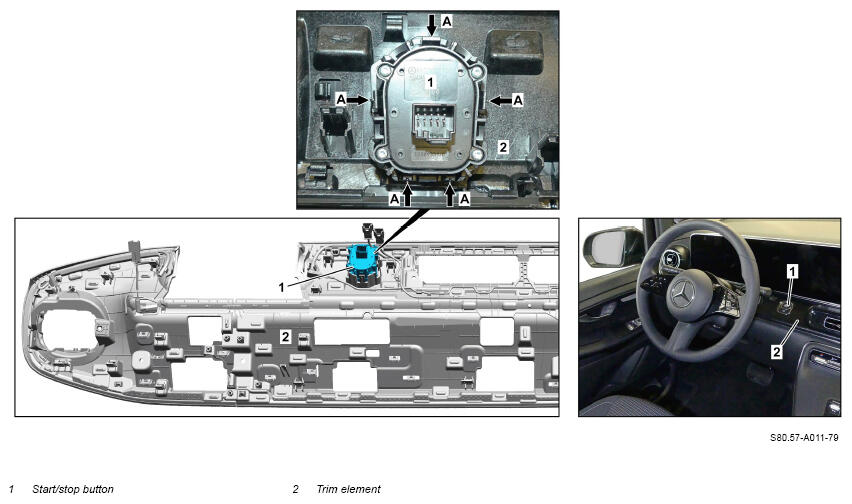

Shown on model 447.8## 1#

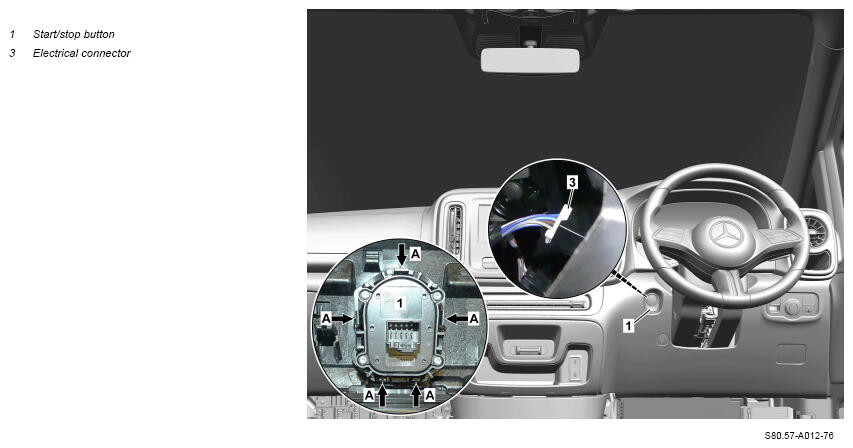

Shown on model 447.7## 2#
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 447 with engine 780 | AH00.00-Z-0300-01A |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2.1 | Remove trim element (2) from instrument panel. | Model 447.8, 448.8 | AR68.10-S-1185EH |
| 2.2 | Remove cover under instrument panel on driver's side. | Model 447.6/7, 448.7 Model 447.6/7 with code LC7 (Illumination for front footwell), model 448.7 |
AR68.10-S-1500E |
| 3 | Release and disconnect electrical connector (3). | Model 447.6/7, 448.7 | |
| 4 | Remove start/stop button (1). | At the same time, press the start/stop button (1) in slightly from the outside so that the locks (arrows A) do not lock again. |
|
| 5 | Install in the reverse order. | ||
| Check | |||
| 6 | Perform function test of start/stop button (1). |
