Installing wiring harness for sensor system of cylinder bank 2
Wiring harness for the sensor system of cylinder bank 2
- Guide in and position wiring harness for sensor system of cylinder bank 2.
- Connect and lock the plug connection for the knock sensors (2) .
- The wiring harness mountings must be released (1)
.
- Connect and lock the connector of the exhaust VANOS solenoid actuator (1) .
- Connect and lock the intake VANOS solenoid actuator (4) .
- Secure the wiring harness mounting (2) .
- Tighten down screw (3)
.TIGHTENING TORQUES SPECIFICATION
Heater return M6x18 Tightening torque 8 Nm - Secure the wiring harness for the sensor system of cylinder bank 2 to the holders in areas (2) .
- Connect connectors (1)
and lock.
- Connect connectors (1)
and lock.
- Connect the wiring harness bracket at the area (1)
and lock.
- Secure the wiring harness for the sensor system of cylinder bank 2 in the holders in areas (1)
.
- Connect connectors (1) and lock.
- Secure the wiring harness for the sensor system of cylinder bank 2 in the holder (2)
.
- Connect connectors (1)
and lock.
- Secure the wiring harness for the sensor system of cylinder bank 2 in the holders in areas (1)
.
- Connect connectors (1) and lock.
- Secure the wiring harness for the sensor system of cylinder bank 2 in the holders in area of arrows.
- Position the grounding point (3) .
- Tighten down screw (2)
.
- Connect connectors (1) and lock.
- Tighten down screw (2) .
- Secure the wiring harness for the sensor system of cylinder bank 2 in the holder in area (3) .
- Tighten down screw (2) .
- Position the grounding point (5) .
- Position the grounding point (6) .
- Tighten the screws (4)
.
- Secure the wiring harness mounting in area (1) .
- Connect connectors (2)
and lock.

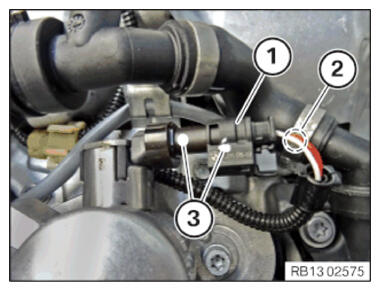

- Ensure that the connector of the high pressure pump is (1) not interchanged with the connector of the intake air temperature sensor.
- Make marks if there are no colored marks (3)
on the plug connections of the high pressure pump.
If necessary, identify the connectors by means of the cable colors in area (2) on the wiring diagram.

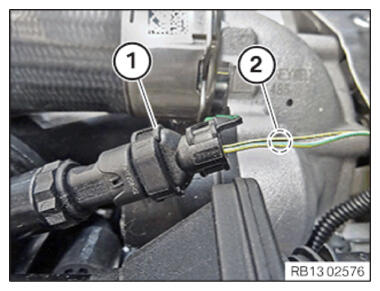

- Ensure that the connector of the intake air temperature sensor is (1) not interchanged with the connector of the high pressure pump.
- If necessary, identify the connectors using the wiring diagram and the cable colors in the area (2)
.
- Secure the wiring harness for the sensor system of cylinder bank 2 in the holder in area (1)
.
- Secure the wiring harness for the sensor system of cylinder bank 2 in the holders in areas (1)
.
- Fix wiring harness mountings (1) .
- Connect connectors (2) and lock.
Follow-up work
- Refer to INSTALLING THE LEFT INTAKE PLENUM .
- Refer to REPLACING THE LEFT AND RIGHT RADIAL SHAFT SEAL RING .
- Refer to INSTALLING THE LEFT ENGINE SUPPORT BRACKET .
- Refer to INSTALLING FRONT AXLE COMPLETELY .
- Refer to TIGHTENING THE BOLTS ON THE FRONT AXLE SUPPORT .
- Refer to SECURING THE SWIVEL BEARING AT THE TOP LEFT AND RIGHT .
- Refer to REMOVING THE MOBILE LIFTING TABLE .
- Refer to ATTACHING COOLANT HOSES TO FRONT AXLE SUPPORT .
- Refer to SECURING THE UNIVERSAL JOINT ON THE STEERING GEAR .
- Refer to ATTACHING THE THERMOSTAT OR TRANSMISSION OIL COOLER LINE ON THE FRONT SUBFRAME .
- Refer to IF INSTALLED: CONNECTING THE CONNECTOR OF THE ACTIVE STABILIZER .
- Refer to IF INSTALLED: SECURING THE LINE FOR THE VERTICAL ACCELERATION SENSOR ON THE RIGHT AND LEFT .
- Refer to ATTACHING THE CABLE OF THE WHEEL RPM SENSOR ON THE LEFT AND RIGHT .
- Refer to SECURING THE FRONT LEFT AND RIGHT BRAKE CALIPER .
- Refer to INSTALLING THE LEFT-HAND AND RIGHT-HAND CRASH LEVER .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
- Refer to INSTALLING THE OUTPUT SHAFT ON LEFT AND RIGHT .
- Refer to CHECK/ADD FRONT AXLE TRANSMISSION OIL .
- Refer to INSTALLING THE LEFT AND RIGHT SPRING STRUT HOLDER .
- Refer to INSTALLING THE RIGHT REINFORCEMENT STRUT .
- Refer to INSTALLING THE TORSION STRUT LEFT AND RIGHT .
- Refer to REMOVING UNDERBODY PROTECTION AT SIDE RIGHT AND LEFT .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to FASTENING THE FRONT LEFT AND RIGHT SPRING STRUT .
- Refer to REMOVING ENGINE BRIDGE .
- Refer to INSTALLING THE CONTROL UNIT BRACKET FOR CYLINDERS 5 TO 8 .
- Refer to INSTALLING THE COVER OF THE LEFT DME CONTROL UNIT .
- Refer to INSTALLING THE COVER OF THE RIGHT DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING CLEAN AIR PIPE OF CYLINDER BANK 1 .
- Refer to INSTALLING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
- Refer to INSTALLING THE LEFT-HAND CHARGE AIR COOLER .
- Refer to INSTALLING THE RIGHT-HAND CHARGE AIR COOLER .
- Refer to INSTALLING FRONT STIFFENING PLATE AND/OR UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to CONNECTING THE LEFT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
- Refer to CONNECTING THE RIGHT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
- Refer to INSTALLING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT (CHARGE AIR COOLER) .
- Refer to SEALING OFF COOLANT FOR LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING DRIVE BELT .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING BOTH FRONT-END STRUTS .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to PLACING THE BRAKE PADS ON THE BRAKE DISK/PUTTING THEM INTO OPERATION .
