Removing the mobile lifting table
Removing the mobile lifting table
NOTE:
Perform the steps on the right and left side.

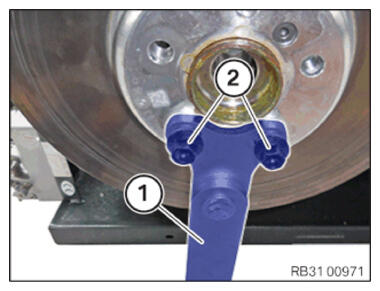

Release the lug bolts (2) at the mount (1).
Courtesy of BMW OF NORTH AMERICA, INC.

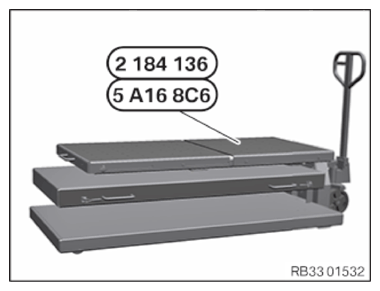

Empty the special tool
2 184 136
or 5A16 8C6 and set aside.
Courtesy of BMW OF NORTH AMERICA, INC.
