Attaching the thermostat or transmission oil cooler line on the front subframe
NOTE:
TECHNICAL INFORMATION
Different variants maybe installed depending on the vehicle equipment.
Different variants maybe installed depending on the vehicle equipment.
- Version A Attaching the thermostat or transmission oil cooler line on the front subframe

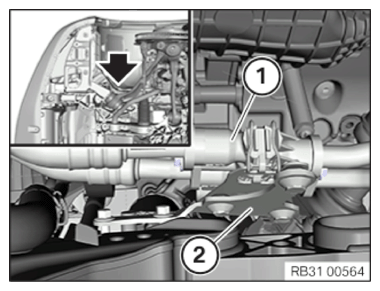

- Attach the thermostat (1) for the transmission oil cooling on the holder (2).
- Version B: Attaching the thermostat or transmission oil cooler line on the front subframe

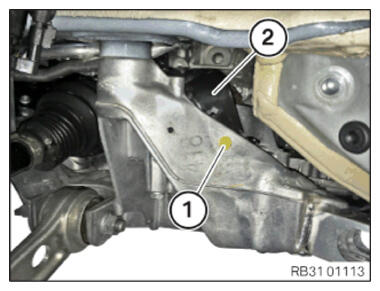

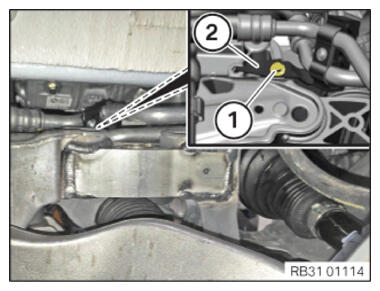

- Position the holder (2) for the transmission oil cooler lines on the front subframe.
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Holder for transmission oil cooler lines on front subframe M6 Tightening torque 8 Nm - Position the holder (2) for the transmission oil cooler lines on the front subframe.
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Holder for transmission oil cooler lines on front subframe M6 Tightening torque 8 Nm
