Installing clean air pipe of cylinder bank 1

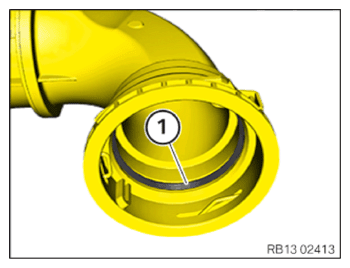

• Check sealing ring (1) for damage, replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

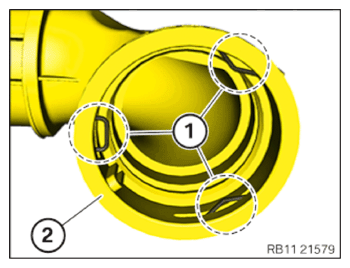

• Before installing the clean air pipe (2), the retaining clip must be in the locked position (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

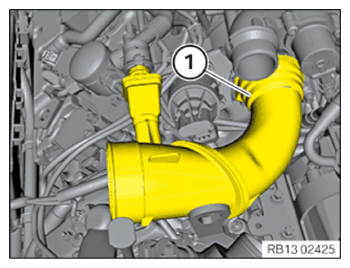

• Position the clean air tube (1).
• Press the clean air pipe (1) toward the exhaust turbocharger until the retaining clip audibly locks.

Courtesy of BMW OF NORTH AMERICA, INC.

Fastening the engine ventilation line of cylinder bank 1

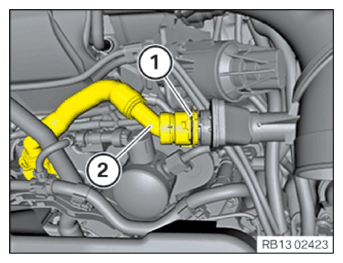

• Position engine ventilation line (2).
• Connect and lock retaining clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CONNECTING THE RIGHT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING WITH THE RIGHT FRONT-END STRUT .
• Refer to INSTALLING THE COVER OF THE RIGHT DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER .
