Connecting the right charge air line to the exhaust turbocharger

NOTE: TECHNICAL INFORMATION
Check the plastic components of the locking mechanism or clamp for damage.
Replace the charge air ducts with damaged plastic components on the locking mechanism.

Courtesy of BMW OF NORTH AMERICA, INC.

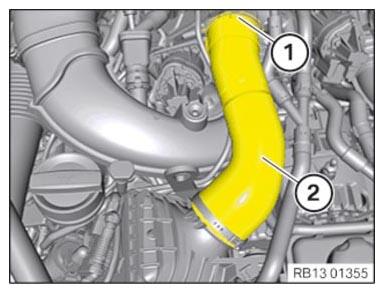

• Connect the right charge air line (2) to the exhaust turbocharger.
• Lock the lock (1) audibly.
