Install the wheel arch cover on the front left and bottom right
NOTE:
Description is for right component only. The procedure on the left side is identical.
Installing the front bottom wheel arch cover
NOTE:

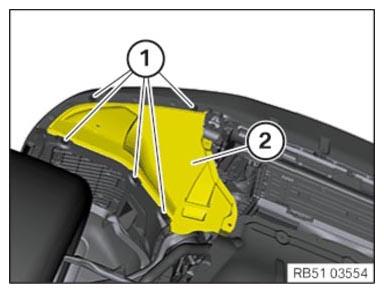

To provide a better overview: Schematic diagram with partially hidden components.
- Guide the wheel arch cover (2) in.
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (screws) | ||
|---|---|---|
| Thermoplastic hexagon screw | Tightening torque | 3 Nm |
