Installing the right reinforcement strut
NOTE:
Description is for left component only. Procedure on the right side is identical.

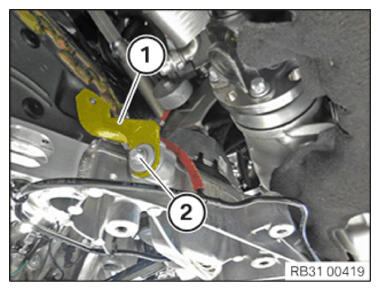

- Position the reinforcement strut (1).
- Screw in the screw (2) by hand force.

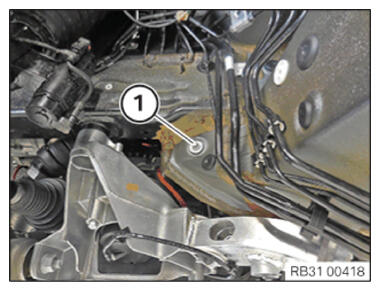

- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Engine mount reinforcement strut on body M8 Tightening torque 28 Nm - Tighten the screw (2) at the reinforcement strut (1).TIGHTENING TORQUE SPECIFICATIONS
Engine mount reinforcement strut on front sub-frame M8 Tightening torque 28 Nm
