Installing the torsion strut left and right
NOTE:
Perform the steps on the right and left side.
Remove torsion strut
Precondition
Remove the thrust field.

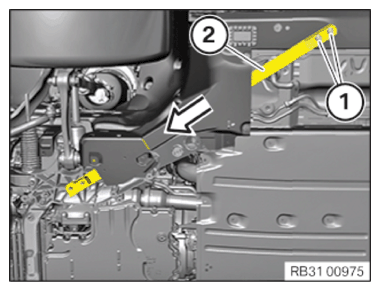

- Loosen screws (1).
- Guide out and remove the torsion strut (2) in the arrow direction.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
NOTE:
Perform the steps on the right and left side.
Remove torsion strut
Precondition
Front thrust field removed.

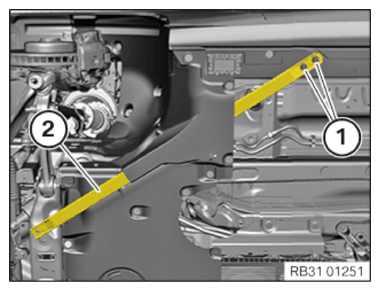

- Loosen screws (1).
- Guide out torsion strut (2) and remove.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
