If installed: securing the line for the vertical acceleration sensor on the right and left
NOTE:
Perform the steps on the right and left side.

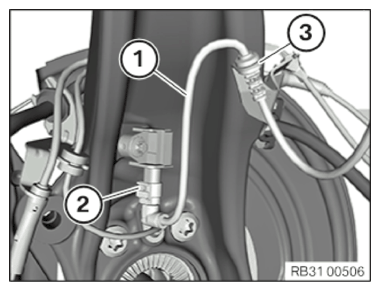

- Secure the wire (1) to the holder (3).
- Insert the connector (2) to the vertical acceleration sensor.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
