Installing the output shaft on left and right
NOTE:
Perform the steps on the right and left side.
NOTE:
TECHNICAL INFORMATION
If the driven shaft is reused, the circlip must be replaced.
If the driven shaft is reused, the circlip must be replaced.
NOTE:
TECHNICAL INFORMATION
Extreme force being required during installation is an indication that the component is damaged or deformed.
Check component and replace if necessary.
Extreme force being required during installation is an indication that the component is damaged or deformed.
Check component and replace if necessary.
- Check the gearing of the output shaft for damage and replace damaged parts if necessary.
- Check the bellows for damage and replace damaged parts if necessary.
- If reusing the output shaft:

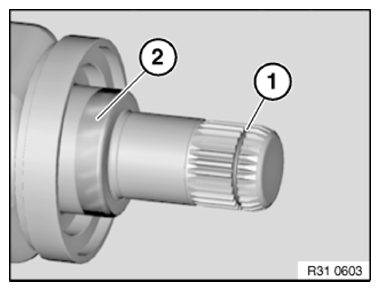

Replace the circlip (1).
Parts: Circlip
- Coat the contact surfaces (2) using approved final drive oil; "FLUID CAPACITIES" tab for the selected vehicle.
- Installing the output shaft

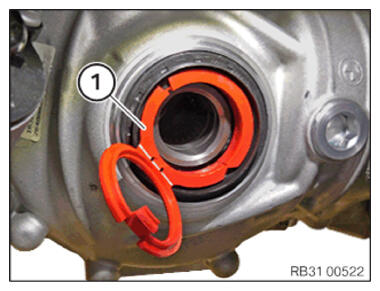

NOTE: The figure shows the procedure for the front axle differential. The procedure for the bearing bracket is identical. - Fold open the assembly protection ring (1).
- Insert the output shaft into the front axle transmission and/or the bearing bracket.

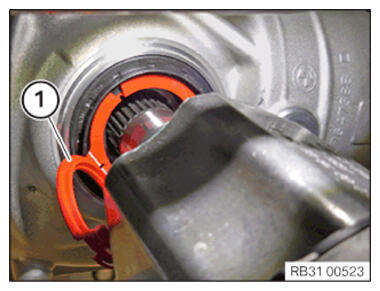

- Pull on the lug (1) of the assembly protection ring until one of the two predetermined breaking points breaks.
- Pull out and dispose of the installation protection ring.

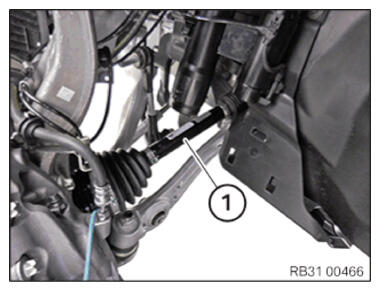

- Slide the output shaft (1) into front axle transmission or bearing bracket up to the stop.
Output shaft coupling must snap audibly into place.
