Installing front stiffening plate and/or underbody protection of the steering gear
Precondition
Underbody protection in the front partially released or removed.
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
- Version A:

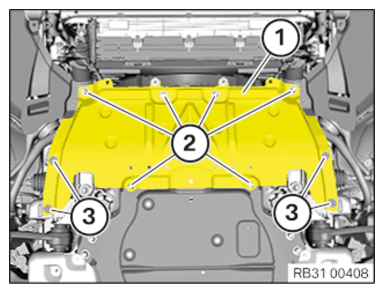

Insert and position the front stiffening plate (1).
Replace screws (2).
Parts: Screws
Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Thrust field to front axle support | ||
|---|---|---|
| M8 Replace screws. |
Joining torque | 25 Nm |
| Angle of rotation | 70° | |
- Tighten down screws (3).
TIGHTENING TORQUES SPECIFICATION
| Cover, steering unit | ||
|---|---|---|
| screw | Tightening torque | 3 Nm |
- Version B:

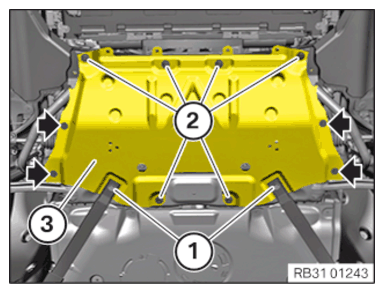

Feed in and position the front stiffening plate (3).
Replace screws (2).
Parts: Screws
Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Thrust field to front axle support | ||
|---|---|---|
| M8 Replace screws. |
Joining torque | 25 Nm |
| Angle of rotation | 70° | |
- Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Cover, steering unit | ||
|---|---|---|
| screw | Tightening torque | 3 Nm |
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Torsion strut to front subframe | ||
|---|---|---|
| M10 Replace screws. |
Joining torque | 56 Nm |
| Angle of rotation | 90° | |
- Version C:

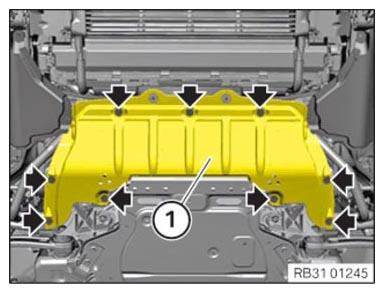

Feed in (1) the underbody protection of the steering gear and position.
Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Underbody protection | ||
|---|---|---|
| screw | Tightening torque | 3 Nm |
