Installing the right-hand charge air cooler

• Insert and position the right-hand charge air cooler (1).
• Position the charge air cooler (1) as shown.

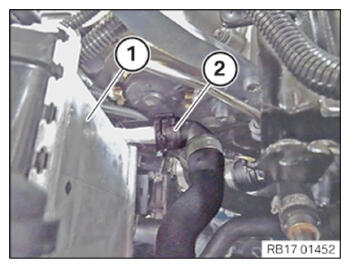

• Connect and lock the coolant line (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

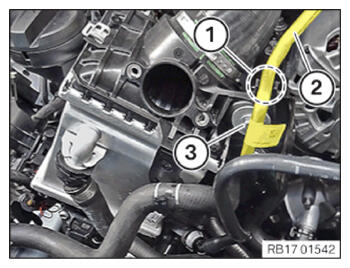

• Tighten down screw (3).

• Position the coolant line (1) from the charge air cooler (2) to the right and clip it in.

  Courtesy of BMW OF NORTH AMERICA, INC.

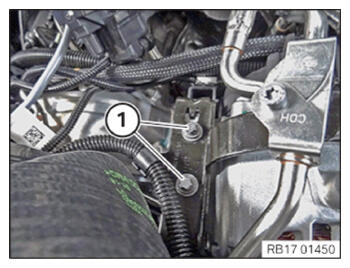

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Alternator to cylinder head
  M8x85	tightening torque	22 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

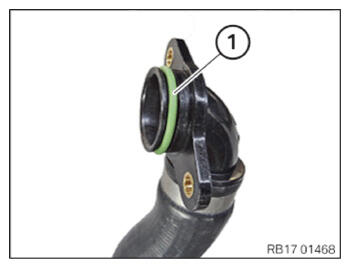

• Check sealing ring (1) for damage, replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

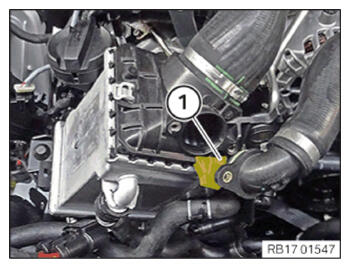

• Connect the bracket in the area (1) and lock it.

  Courtesy of BMW OF NORTH AMERICA, INC.

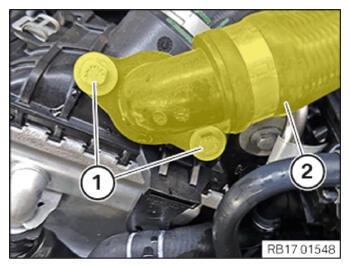

• Insert and install charge air line (2).
• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Lock clamp (2).

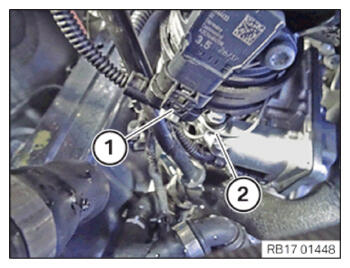

• Connect plug connection (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

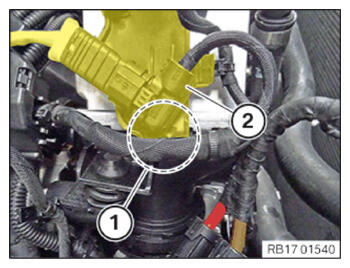

• Unlock the bracket at the lock (1).
• Feed out the tank vent valve with holder (2) and place it on one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT (CHARGE AIR COOLER) .
• Refer to SEALING OFF COOLANT FOR LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING FRONT STIFFENING PLATE AND/OR UNDERBODY PROTECTION OF THE STEERING GEAR .
• Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to CONNECTING THE RIGHT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING BOTH FRONT-END STRUTS .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
