Securing the front left and right brake caliper

NOTE: Perform the steps on the right and left side.

Fastening front brake caliper

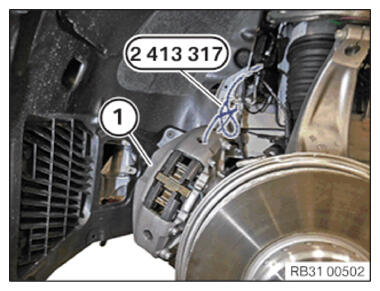

Loosen the special tool 2 413 317 from the brake caliper (1).

Courtesy of BMW OF NORTH AMERICA, INC.

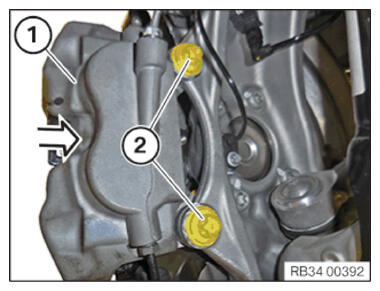

Position the brake caliper (1) in arrow direction.
Replace screws (2).
Parts: Screws

Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Brake caliper/brake anchor plate at front swivel bearing
M12 Replace screw.	Tightening torque	130 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Only perform the operation on the left side.

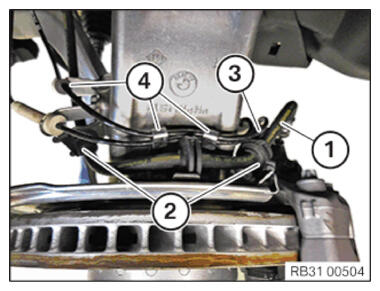

Attach the cable (3) for the brake pad wear sensor to the holders (4).
Fasten brake hose (1) to the brackets (2).
