Secure the wiring harness for the EPS on the front axle support

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

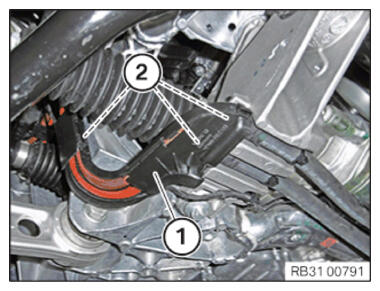

Version A:
Position wiring harness (1).

Fasten the wiring harness (1) in the areas (2).

Courtesy of BMW OF NORTH AMERICA, INC.

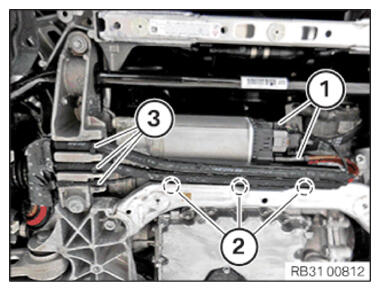

Fasten the wiring harness in the area (3) on the retaining bracket.

Fasten the wiring harness in the marked areas (2) on the front axle support.

Connect connectors (1) and lock.

G15700890

Courtesy of BMW OF NORTH AMERICA, INC.

Version B:

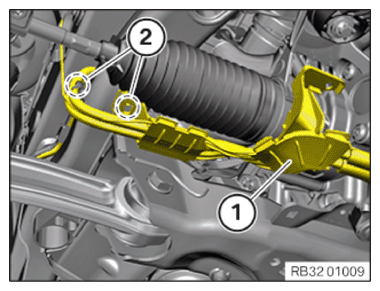

Position the wiring harness (1).

Fasten the wiring harness (1) in the marked areas (2) on the front axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

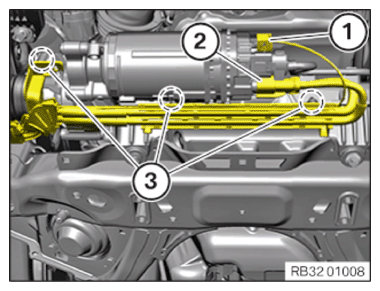

Fasten the wiring harness in the marked areas (3) on the steering gear.

Connect connectors (1) and (2) lock.

G15700892

Courtesy of BMW OF NORTH AMERICA, INC.
