Fasten the front left and right spring strut
Fasten the front left and right spring strut
NOTE:
Perform the steps on the right and left side.
Attach the front spring strut

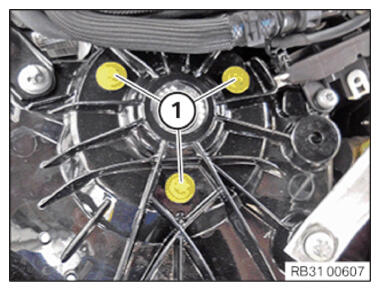

Position the spring strut on the strut-tower.
Replace screws (1).
Parts:
Screws
Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
Front spring strut support bearing to body
M8 Replace screws.
tightening torque
28 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
