Attaching coolant hoses to front axle support

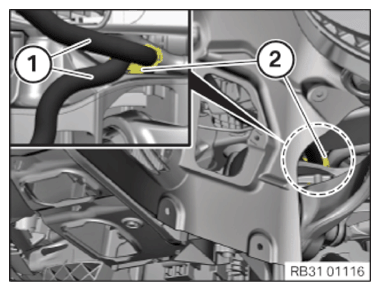

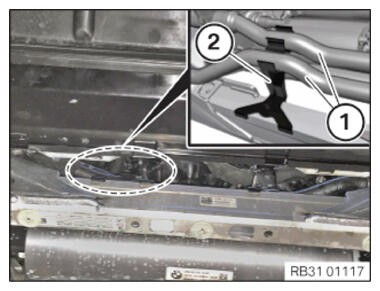

• Secure the coolant hoses (1) at the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

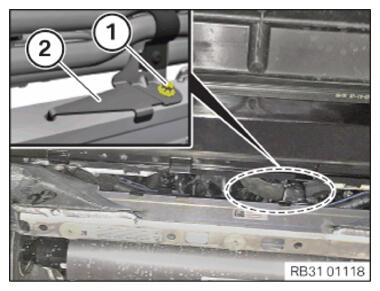

• Position the holder (2) on the front subframe.
• Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Coolant hose holder on front subframe
M8	Tightening torque	13 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

• Secure the coolant hoses (1) at the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.
