Installing the front section of the front wheel arch cover on the left and right

NOTE: Perform the steps on the right and left side.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the front section of the front wheel arch cover

For replacement:

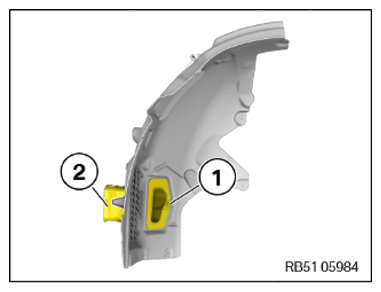

Position the brake ventilation duct (2).

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Brake ventilation duct on front wheel arch cover front section
Hexagon screw for thermoplastic	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

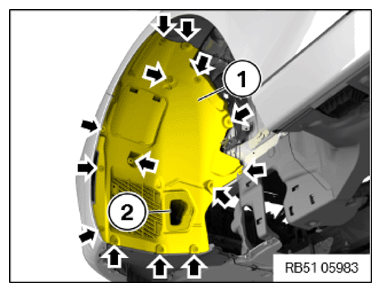

Guide in front section (1) of the wheel arch cover at the front together with the brake ventilation duct (2).

Tighten the screws (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Front wheel arch cover front section on body
Hexagon screw for thermoplastic	Tightening torque	3 Nm
