Overview Of System Components, Instrument Cluster (IC) Component Description - GF54.30-P-9996RR
Model 190

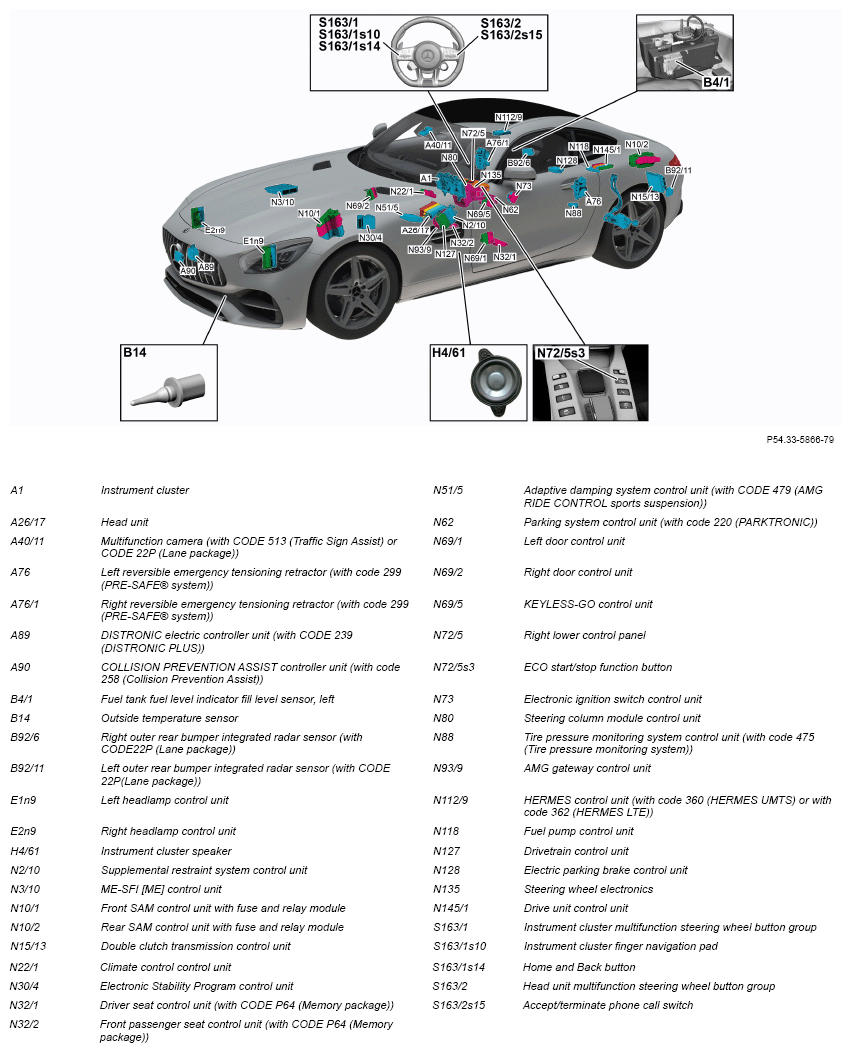

Shown on model 190.3 as of 01.12.2018

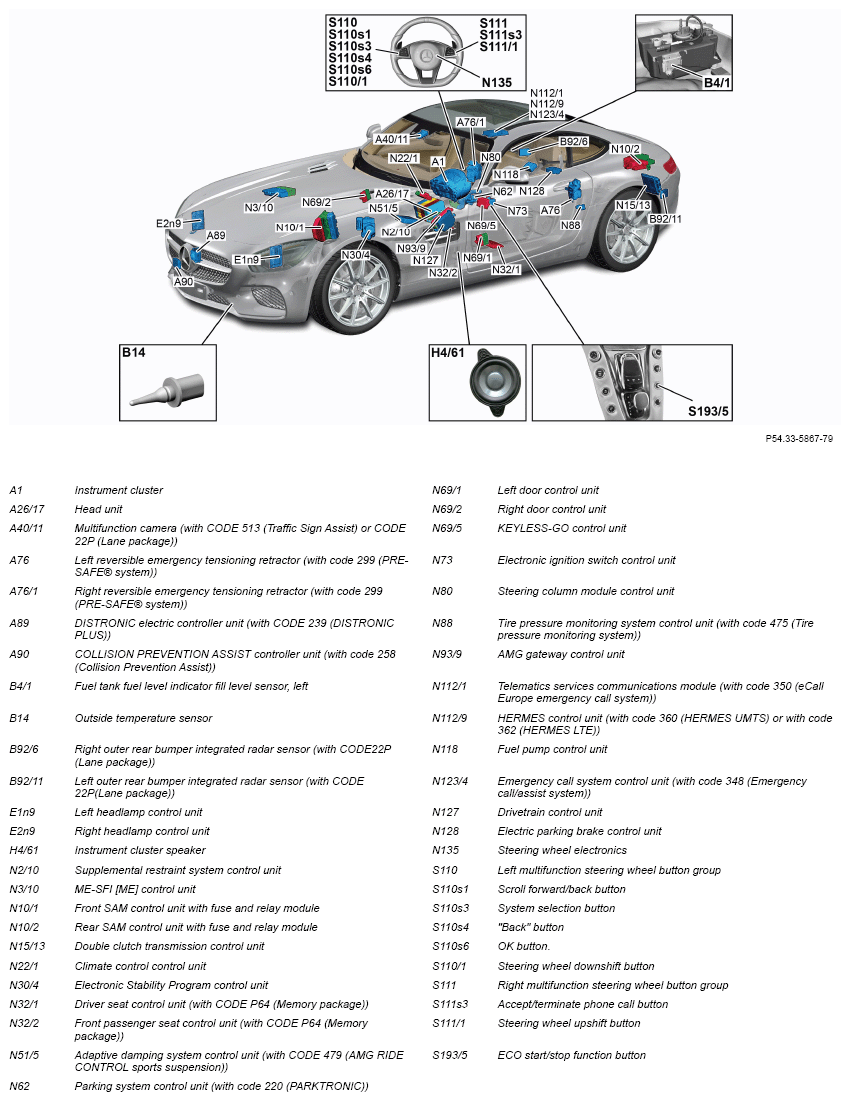

Shown on model 190.3 up to 30.11.2018
Model 190.4

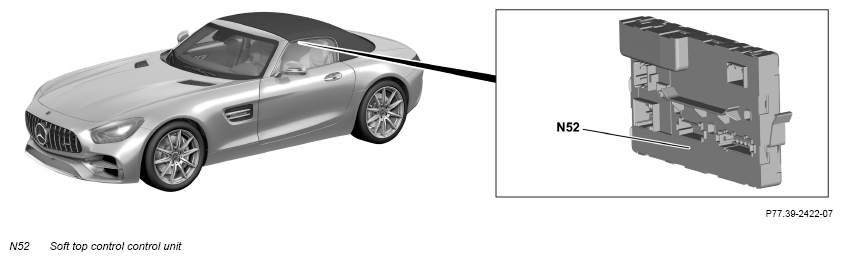

The control unit for the soft top control (N52) is not shown here.
Show on model 190

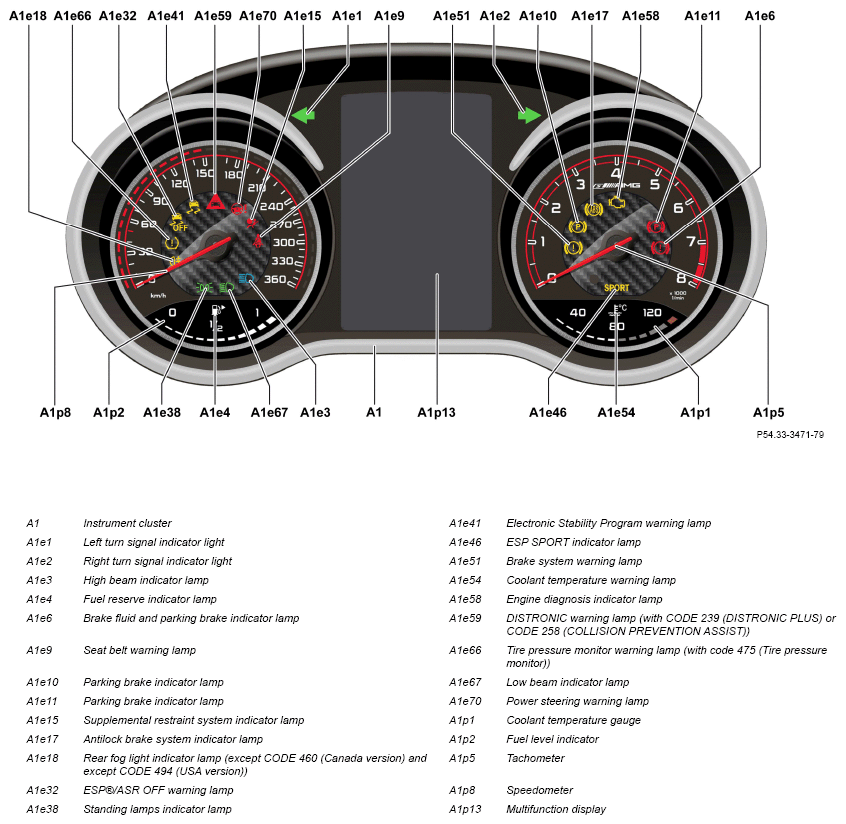

| Component description for instrument cluster | A1 | GF54.30-P-6000RR | |
| Head unit, component description | Model 190 with code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RR | |
| Model 190 with code 531 (COMAND APS) except code 520 (Audio 20 USB) A26/17 |
GF82.85-P-3140RRA | ||
| Component description for multifunction camera | Model 190 with code 22P (Lane tracking package) Model 190 with code 513 (Road sign recognition system) A40/11 |
GF54.21-P-3300RR | |
| Component description for front reversible emergency tensioning retractors | Model 190 with code 299 (PRE-SAFE) A76, A761 |
GF91.40-P-4020RR | |
| Component description for DISTRONIC electric controller unit | Model 190 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) A89 |
GF30.30-P-3213RR | |
| COLLISION PREVENTION ASSIST controller unit, component description | Model 190 with code 258 (Collision warning system with active brake application FCW-Stop) A90 |
GF30.30-P-3214RR | |
| Component description for intelligent radar sensor control unit | Model 190 with code 22P (Lane tracking package) B92/6, B92/11 |
GF30.30-P-3305RR | |
| Headlamp control unit, component description | E1n9, E2n9 | GF82.10-P-2020RR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RR | |
| Component description for ME-SFI (ME) control unit | Model 190 with engine 178.9 N3/10 |
GF07.61-P-6000MNB | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RR | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RR | |
| Dual clutch transmission control unit, component description | N15/13 | GF27.60-P-5171RR | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250RR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RR | |
| Component description for driver seat control unit | Model 190 with code P64 (Memory package) N32/1 |
GF91.29-P-5231RR | |
| Component description for front passenger seat control unit | Model 190 with code P64 (Memory package) N32/2 |
GF91.29-P-5241RR | |
| Component description for adaptive damping system control unit | Model 190 with code 479 (AMG RIDE CONTROL sports suspension) N51/5 |
GF32.32-P-1010RR | |
| Soft top control control unit, component description | Model 190.4 N52 |
GF77.39-P-3211RR | |
| Parking system control unit component description | Model 190 up to 11/30/18 up to model year 2019 with code 220 (PARKTRONIC system (PTS)) N62 |
GF54.65-P-5002RR | |
| Parking system control unit, component description | Model 190 as of 12/1/18 as of model year 2019 with code 218 (Rear view camera) Model 190 as of 12/1/18 as of model year 2019 with code 220 (PARKTRONIC system (PTS)) N62 |
GF54.65-P-5004RRM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RR | |
| Component description for KEYLESS-GO control unit | N69/5 | GF80.61-P-4204RR | |
| Lower control panel control unit, component description | Model 190 as of 12/1/18 as of model year 2019 N72/5 |
GF54.21-P-6060RRM | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RR | |
| Component description for steering column tube module control unit | Model 190 up to 11/30/18 up to model year 2019 N80 |
GF54.21-P-6051RR | |
| Model 190 as of 12/1/18 as of model year 2019 N80 |
GF54.21-P-6051RRM | ||
| Component description for tire pressure monitor control unit | Model 190 with code 475 (Tire pressure monitor (TPM)) N88 |
GF40.15-P-5124RR | |
| AMG gateway control unit, component description | Model 190 with transmission 700.4 N93/9 |
GF54.21-P-1001RR | |
| Telematics services communications module, component description | Model 190 up to model year 2017 with code 350 (Ecall emergency call system, Europe) N112/2 |
GF82.85-P-0220RR | |
| HERMES control unit, component description | Model 190 with code 360 (HERMES UMTS) Model 190 with code 362 (HERMES communications module LTE) N112/9 |
GF82.85-P-0221RR | |
| Component description for fuel pump control unit | Model 190 with engine 178.9 N118 |
GF47.40-P-2001MNB | |
| Component description for emergency call system control unit | Model 190 up to model year 2017 with code 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212RRU | |
| Drivetrain control unit, component description | Model 190 with engine 178.9 N127 |
GF54.21-P-2141MNB | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005RR | |
| Steering wheel electronics control unit, component description | Model 190 as of 12/1/18 as of model year 2019 N135 |
GF82.90-P-4006RR | |
| Table of contents for function description of instrument cluster (IC) | GF54.30-P-0997RR |
