Instrument Cluster, Component Description - GF54.30-P-6000RR

Model 190

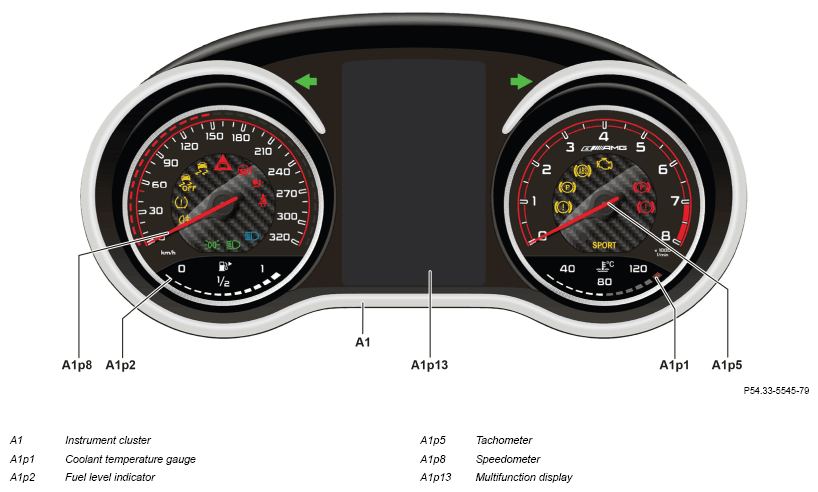

G16682180Courtesy of MERCEDES-BENZ USA

Shown on model 190 up to 30.11.2018, ECE variant (Economic Commission for Europe)

IMPORTANT The symbols of the indicator and warning messages are described in a separate document.

IMPORTANT

Model 190

as of model year 2018

with code 494 (US version)

The coolant temperature display is labeled with COLD and HOT.

Shown on digital full display as of 01.12.2018, CLASSIC view

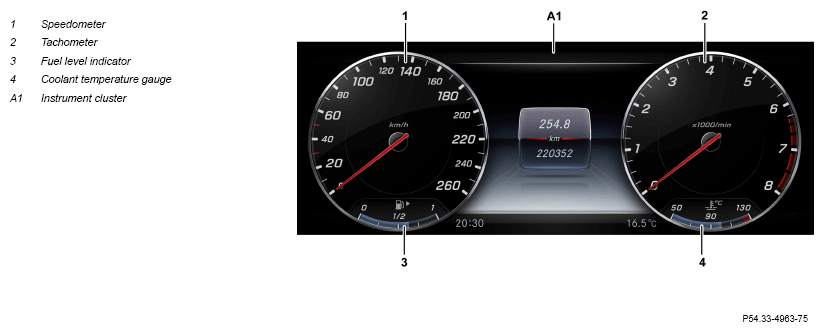

G16682181Courtesy of MERCEDES-BENZ USA

IMPORTANT

Model 190 as of 12/1/18

as of model year 2019

The symbols available on the analog display as indicator and warning lamps are shown accordingly on the digital full display.

Location

The instrument cluster is located in the dashboard on the driver-side.

Tasks

The instrument cluster has the following tasks:

Reading in of sensors and signals

The instrument cluster reads in information and data via the following connections:

User interface CAN

The signals are read in by the instrument cluster via user interface CAN.

High Speed Video Link (as of 01.12.2018)

The instrument cluster is connected to the head unit (A26/17) via a HSVL line. Via this interface, the instrument cluster receives map data from the head unit.

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Output of warning tones and indicator tones

The instrument cluster actuates the instrument cluster speaker (H4/61) in the driver footwell to output warning and indicator tones which are requested by the systems installed in the vehicle.

Output of signals

Signals are output via the user interface CAN.

The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

  Overview of symbols of indicator/warning messages   GF54.30-P-2001-04AA
  Wiring diagram for instrument cluster (IC) control unit Model 190 as of 12/1/18 as of model year 2019 PE54.30-P-2101-97HBB
    Model 190 up to 11/30/18 up to model year 2019 PE54.30-P-2101-97HBA
