Parking System Control Unit, Component Description - GF54.65-P-5002RR

Model 190 up to 11/30/18

up to model year 2019

With Code 220 (PARKTRONIC system (PTS))

Location

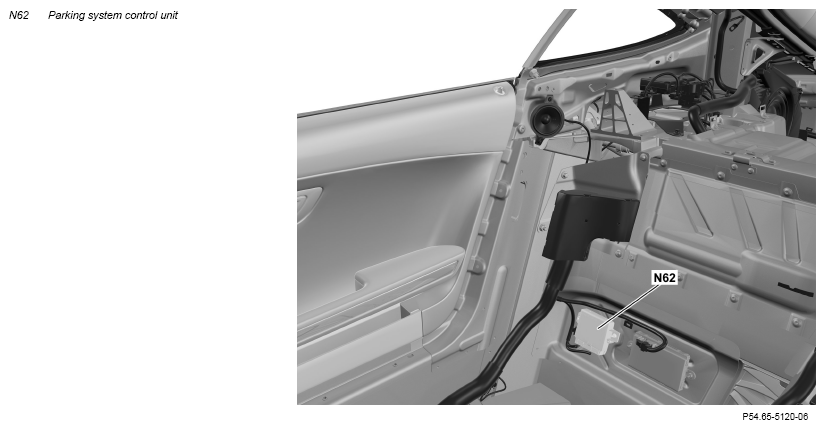

The parking system control unit is mounted behind the front passenger seat on the partition.

Tasks

The parking system control unit controls the PARKTRONIC function and has the following tasks:

• Reading in of sensors
• Evaluation of input factors
• Actuation of components
• Sending signals

Reading in of sensors

The input factors are read in via the following connections:

• Direct line
• Chassis CAN 2 (CAN E2)

Direct line

The signals from the following components are read via direct lines:

• Rear parking system warning indicator (A44/3) (Function test)
• Left front outer parking system distance sensor (B8/1)
• Left front center parking system distance sensor (B8/2)
• Left front inner parking system distance sensor (B8/3)
• Right front inner parking system distance sensor (B8/4)
• Right front center parking system distance sensor (B8/5)
• Right front outer parking system distance sensor (B8/6)
• Outer right rear parking system distance sensor (B8/7)
• Inner right rear parking system distance sensor (B8/8)
• Inner left rear parking system distance sensor (B8/9)
• Outer left rear parking system distance sensor (B8/10)

Chassis CAN 2

The parking system control unit also reads in the following information via suspension CAN 2:

• Terminal status of terminal 15
• Engine running or drive train operational
• Wheel speed and wheel rotation direction
• Vehicle speed
• Status of parking brake
• Gear range "R" engaged
• Ambient brightness
• Status of parking system button (N72/1s8)

The functions that use these signals are described in the individual function descriptions (see block diagram or function schematic).

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components

The following components are actuated via direct lines:

• Rear parking system warning indicator
• Parking system distance sensors

Sending signals

The parking system control unit also transmits the following information or requests via suspension CAN 2:

• Request to show parking system warning indicator in the multifunction display (A1p13)
• Request to display messages or issue a warning tone
• Parking system status indication request
• Information on distance to obstacle

Parking system control unit wiring diagram

PE54.65-P-2101-97HBA
