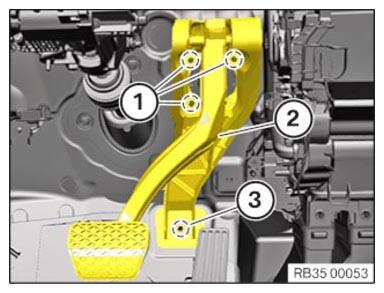

Installing the bearing bracket for the pedal mechanism

• Install bearing bracket (2)  .
• Replace nuts (1)  .

  Parts:  Nuts

• Tighten nuts (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Bearing bracket for the pedal mechanism on the body
  Replace screw.	Tightening torque	21.40 Nm
  Replace nuts.	Tightening torque	21.40 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the screw (3)  .

  Parts:  Screw

• Tighten down screw (3)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Bearing bracket for the pedal mechanism on the body
  Replace screw.	Tightening torque	21.40 Nm
  Replace nuts.	Tightening torque	21.40 Nm

• Lock brake pedal (1)  in place in the arrow direction with the brake booster.

  Ensure that the brake pedal is completely locked with the brake booster!

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SUPPORT FOR THE INSTRUMENT PANEL .
• Refer to INSTALLING INSTRUMENT PANEL LOWER SECTION (PARTIALLY REMOVED) .
• Refer to CHECKING THE NEUTRAL POSITION OF THE COIL SPRING .
• Refer to INSTALLING THE LIGHT OPERATING UNIT .
• Refer to INSTALLING THE CENTER STACK TRIM .
• Refer to INSTALLING THE UPPER DASHBOARD TRIM .
• Refer to INSTALLING THE INSTRUMENT CLUSTER .
• Refer to INSTALLING THE RIGHT VENTILATION GRILLE .
• Refer to INSTALLING THE CENTER VENTILATION GRILLE .
• Refer to INSTALLING THE LEFT VENTILATION GRILLE .
• Refer to INSTALLING THE AIR DUCT FOR INDIRECT VENTILATION .
• Refer to INSTALLING THE SPEAKER HOLDER ON THE DASHBOARD .
• Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
• Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
• Refer to INSTALLING STEERING WHEEL .
• Refer to INSTALLING AIRBAG UNIT OF THE STEERING WHEEL .
• Refer to FITTING THE STEERING COLUMN SHROUD UPPER SECTION .
• Refer to INSTALLING A-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE A-PILLAR TRIM PANEL AT THE CENTER LEFT AND RIGHT .
• Refer to INSTALLING THE SIDE COVER ON THE DASHBOARD AT LEFT AND RIGHT .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to INSTALLING DOOR SILL COVER STRIP, FRONT RIGHT .
• Refer to INSTALLING RIGHT FOOTWELL TRIM .
• Refer to INSTALLING THE BOTTOM FRONT CENTER CONSOLE .
• Refer to INSTALLING THE STORAGE TRAY FOR THE NEAR FIELD COMMUNICATION .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
• Refer to CLOSING THE ENGINE COMPARTMENT LID .
