64 22 Air Vents
>>
64 22 160 Removing and installing/replacing middle fresh-air grille
>>
Install the center ventilation grille
Install the center ventilation grille

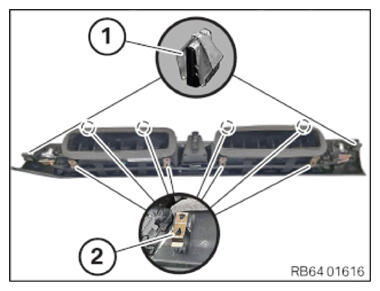

Check the clamps
(1)
and
(2)
for damage and replace if necessary.
Courtesy of BMW OF NORTH AMERICA, INC.

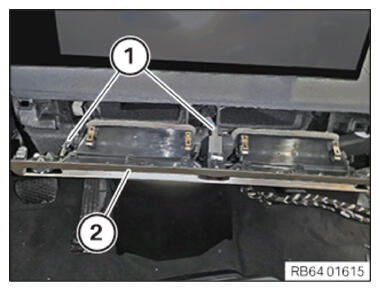

Position the ventilation grille
(2)
.
Connect connectors
(1)
and lock.
Courtesy of BMW OF NORTH AMERICA, INC.

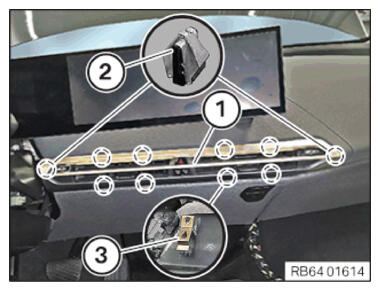

Position the ventilation grille
(1)
correctly and clip in the clamps
(2)
and
(3)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
