Install steering column shroud lower section

Check

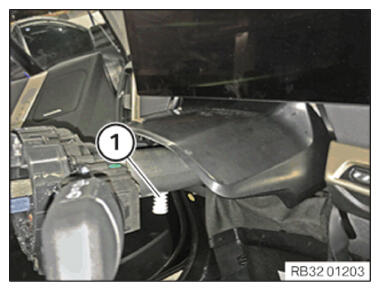

• Check the plastic pin (1)  for correct fit and for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Plastic pin (1)  damaged.

  Measure

  • Replace the plastic pin (1)  .

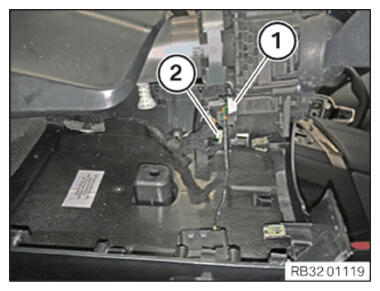

• Connect the connectors (1)  and (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

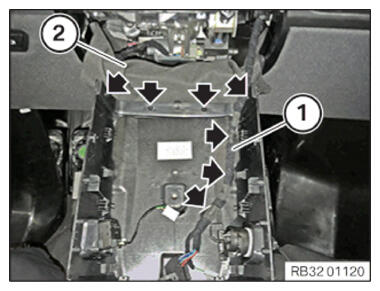

• Clip in the wiring harness (1)  in the steering column shroud lower section.
• Clip in the gap cover (2)  in the steering column shroud lower section.

Courtesy of BMW OF NORTH AMERICA, INC.

Check

• Check the retaining clips (3)  for correct fit and for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Retaining clips (3)  damaged.

  Measure

  • Replace the retaining clips (3)  .

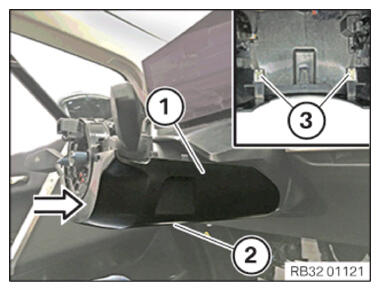

• Screw the steering column shroud (1)  in the arrow direction.
  NOTE: RISK OF DAMAGE
  Damage to the steering column
  Using a screw that is too long can damage the steering column:

  • Only use an original oval-head screw! See applicable BMW parts catalogue.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screw (2)  from the bottom.

Follow-up work

• Refer to FITTING THE STEERING COLUMN SHROUD UPPER SECTION .
• Refer to INSTALLING STEERING WHEEL .
• Refer to INSTALLING AIRBAG UNIT OF THE STEERING WHEEL .
• Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
• Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
• Refer to CLOSING THE ENGINE COMPARTMENT LID .
• Refer to INSTALLING THE FLAP IN THE RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
