General Electrical System (1 Of 2) -- Repair (IX)
>>
61 31 Switches, Remote Control Receiver
>>
61 31 037 Removing and installing/replacing light control unit
>>
Installing the light operating unit
Installing the light operating unit

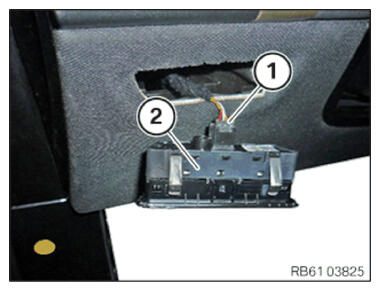

Connect the connector
(1)
to the light operating unit
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.

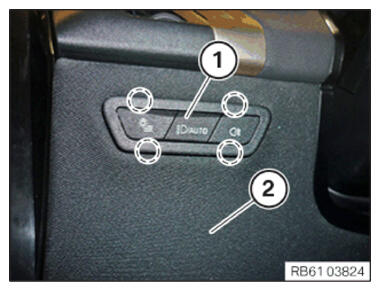

Position the light operating unit
(1)
correctly on the dashboard trim
(2)
and clip it into the marked points.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
