Install airbag unit of the steering wheel

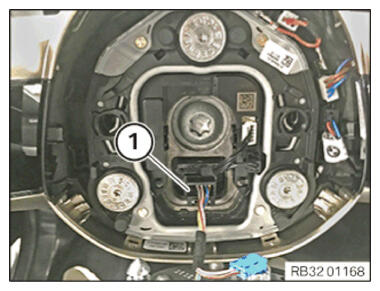

- Connect connector (1)
.

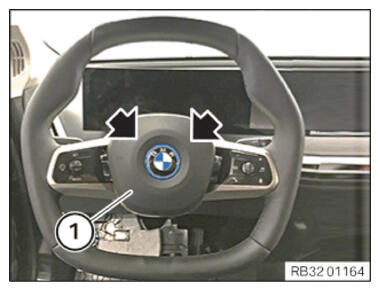

- Press in the airbag unit (1)
into the steering wheel with even pressure in the arrow direction.
The airbag unit must be seen and heard engaging.
Follow-up work
- Refer to FITTING THE STEERING COLUMN SHROUD UPPER SECTION .
- Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
- Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
- Refer to CLOSING THE ENGINE COMPARTMENT LID .
- Refer to INSTALLING THE FLAP IN THE RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
