Fitting the steering column shroud upper section

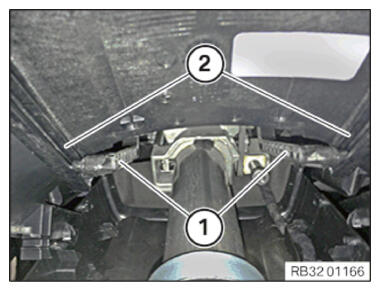

- Insert guide bracket/retainer (1)
into guide rails (2)
when installing the steering column shroud upper section.NOTE: Perform the steps on the right and left side.

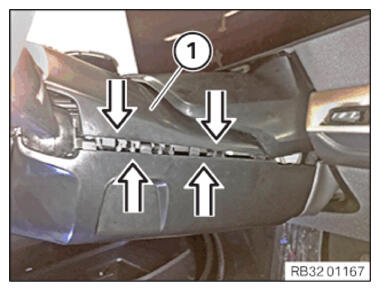

- Press down steering column shroud upper section (1)
in the arrow direction while gripping the bottom of the steering column shroud simultaneously.
The upper section of the steering column shroud must engage audibly and perceptibly.
