(Installing the A-pillar trim panel at the center left and right)

NOTE: Description is for left component only. Procedure on the right side is identical.

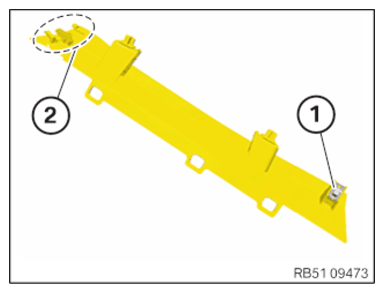

• Check clamp (1) for damage and replace if necessary.
• Check guides (2) for damage and replace the center A-pillar trim panel if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

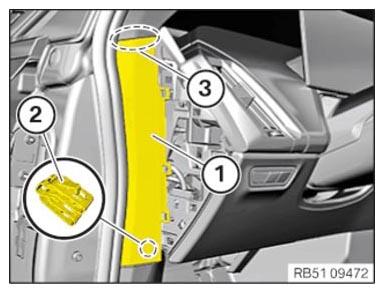

• Install the center of A-pillar trim panel (2) and insert it into guide (3).
• Clip the center of A-pillar trim panel (1) into clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.
