(Installing instrument panel lower section (partially removed))

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

• Protect working area.
• Handle tools and components carefully.

NOTE: RISK OF DAMAGE
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.

• Protect surfaces from damage.

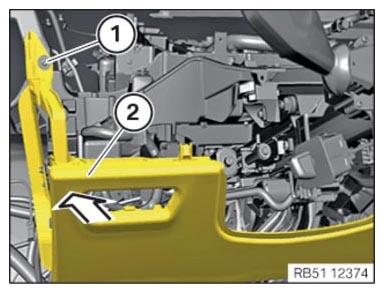

• Position the instrument panel lower section (2) in arrow direction and slide into the mount by approx. 4 cm.
• Tighten down screw (1).

(TIGHTENING TORQUES SPECIFICATIONS)

Dashboard
Oval-head screw for thermoplastics	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

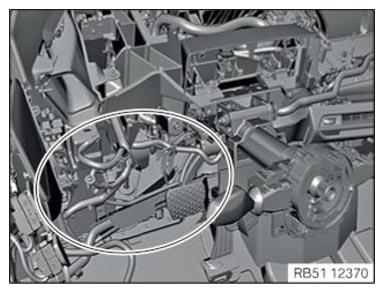

• Fasten wiring harness in marked area to all holders of the instrument panel lower section.
• Connect and lock the present connectors.

Courtesy of BMW OF NORTH AMERICA, INC.
