Install steering wheel

Check the neutral position of the coil spring

Check

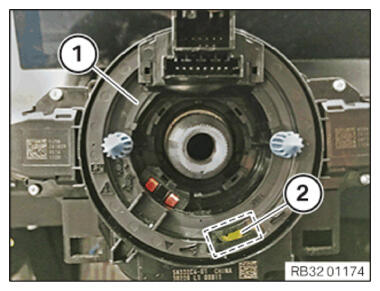

• Check the yellow marking (2)  in the inspection glass of the coil spring cassette (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The marking (2)  on the clock spring is not visible.

Measure

• Turn the coil spring cassette (1)  until the mark (2)  on the coil spring is visible in the inspection glass.

• Align mark (1)  on steering wheel to mark (2)  on steering column.
• Position the steering wheel.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clean the thread in the steering column.

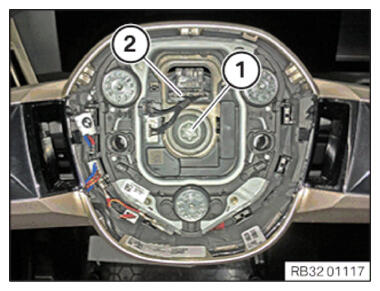

• Replace the screw (1)  .

  Parts: Screw

• Tighten down screw (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Steering wheel to steering column
  M14 Replace screw.	Tightening torque	62.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connector (2)  .

Follow-up work

• Refer to INSTALLING THE CONTROL UNIT FOR THE STEERING WHEEL ELECTRONICS .
• Refer to INSTALLING THE HORN PLATE .
• Refer to INSTALLING THE STEERING WHEEL COVER .
• Refer to FITTING THE STEERING COLUMN SHROUD UPPER SECTION .
• Refer to INSTALLING AIRBAG UNIT OF THE STEERING WHEEL .
• Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
• Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
• Refer to INSTALLING THE FLAP IN THE RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to CLOSING THE ENGINE COMPARTMENT LID .
