Installing the bottom front center console
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

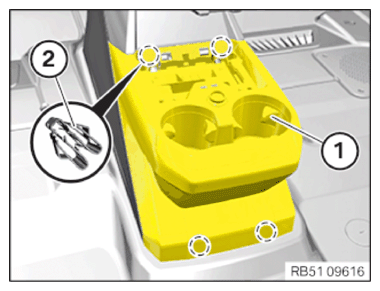

- Fit the bottom front center console (1) . When doing so, connect and lock all available connectors.
- Engage the bottom front center console (1)
at the clamps (2)
.

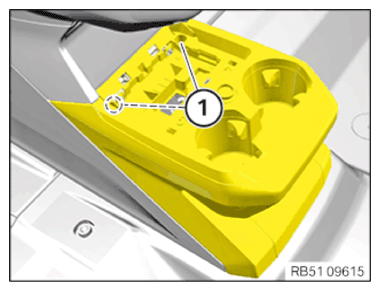

- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Center console | ||
|---|---|---|
| Oval-head screw | Tightening torque | 3 Nm |
Follow-up work
