(Installing the side cover on the dashboard at left and right)

NOTE: Description is for left component only. Procedure on the right side is identical.

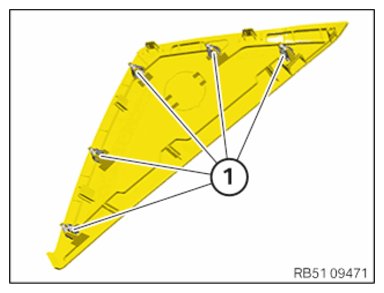

• Check the clamps (1) and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

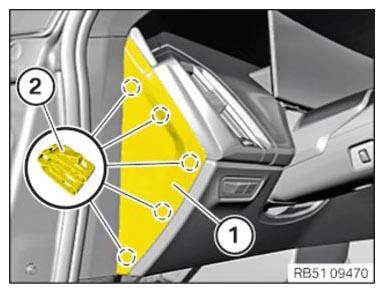

• Position the side cover (1) correctly and clip it into the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
