Install the speaker holder on the dashboard

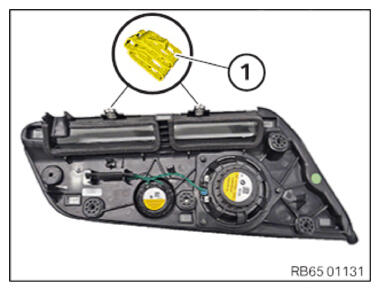

• Check the clamps (1)  for damage and replace them if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

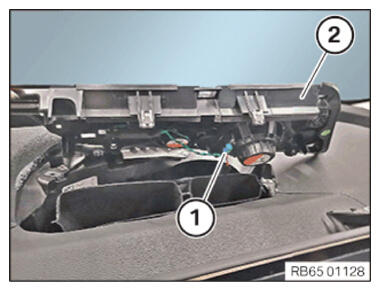

• Position the speaker holder (2)  .
• Connect connector (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

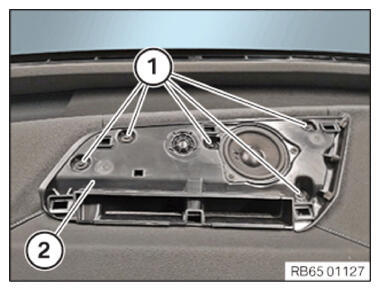

• Install the speaker holder (2)  .
• Tighten down screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
