Installing the instrument cluster

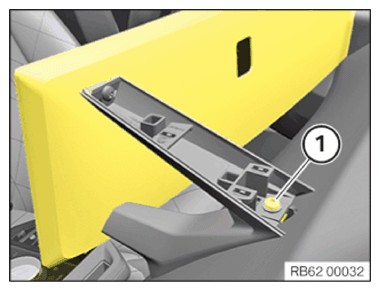

• The sheet metal nut (1)  must not be damaged or missing.

  Courtesy of BMW OF NORTH AMERICA, INC.

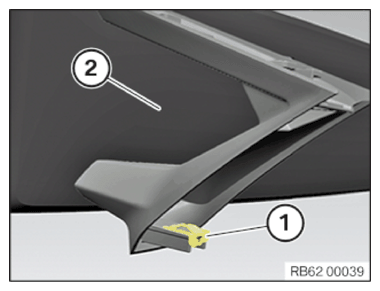

• The retaining clip (1)  from the instrument cluster (2)  must not be damaged or missing.

  Courtesy of BMW OF NORTH AMERICA, INC.

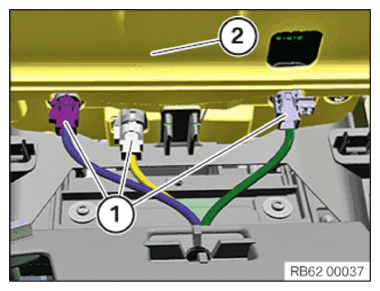

• Connect the connector (1)  to the instrument cluster (2)  and lock it.

  Courtesy of BMW OF NORTH AMERICA, INC.

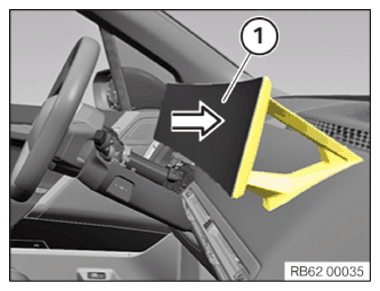

• Guide in the instrument cluster (2)  evenly in the arrow direction and position it.

  Courtesy of BMW OF NORTH AMERICA, INC.

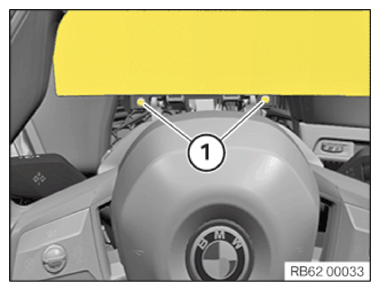

• Tighten down screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

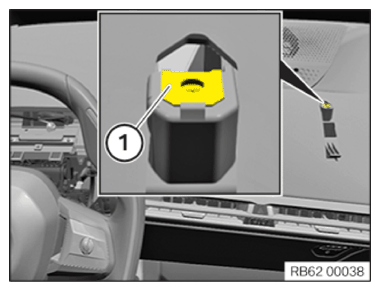

• Tighten down screw (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

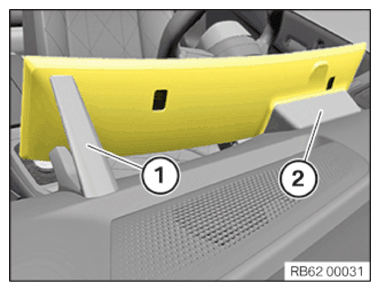

• Clip in the cover (1)  and (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to FITTING THE STEERING COLUMN SHROUD UPPER SECTION .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
