(Installing the support for the instrument panel)

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.

• Protect working area.
• Handle tools and components carefully.

NOTE: RISK OF DAMAGE
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.

• Protect surfaces from damage.

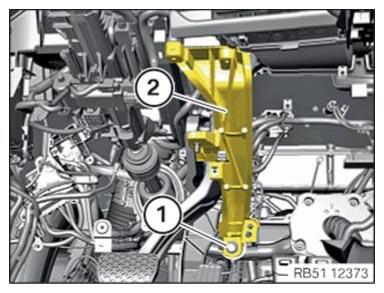

• Position support (2) for the instrument panel.
• Tighten down screw (1).

(TIGHTENING TORQUES SPECIFICATIONS)

Support for instrument panel
Hexagon nut or hexagon bolt	Tightening torque	21 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

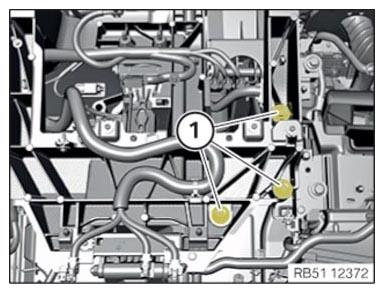

• Tighten screws (1) on the support for the instrument panel.

(TIGHTENING TORQUES SPECIFICATIONS)

Support for instrument panel
Hexagon nut or hexagon bolt	Tightening torque	21 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

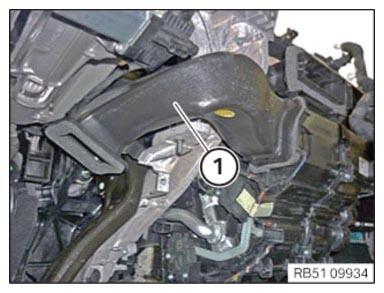

• Install the air duct (1).

Courtesy of BMW OF NORTH AMERICA, INC.
