Installing the trim panel for the pedal assembly

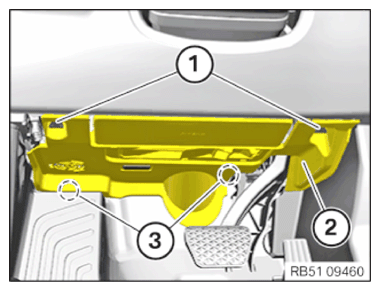

- Install trim panel (2) and connect and lock the associated connectors.
- Hook trim panel (2) into guides (3) and fold it upwards.
NOTE:
TECHNICAL INFORMATION
The screw caps of the trim panel must be correctly locked in place. This is the only way to ensure that the trim panel does not loosen and, as a result, tilt into the pedal area.
The screw caps of the trim panel must be correctly locked in place. This is the only way to ensure that the trim panel does not loosen and, as a result, tilt into the pedal area.
- Insert screw caps (1) correctly and turn them 90° to lock them.
