(Installing A-pillar trim panel on the left and right)
NOTE:
Description is for left component only. Procedure on the right side is identical.
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before working on the airbag, disconnect the negative battery cable from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

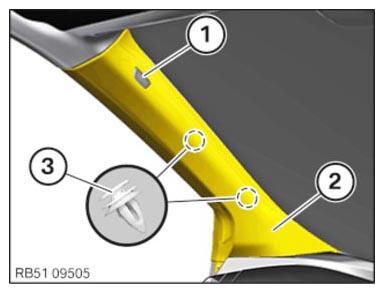

- Insert the A-pillar trim panel (2) and clip into the clips (3).
- Tighten the screw and mount the cover (1).
(TIGHTENING TORQUES SPECIFICATIONS)
| A-pillar trim panel/C-pillar trim panel on body | ||
|---|---|---|
| Oval-head screw | Tightening torque | 2.6 Nm |
