Installing the left ventilation grille

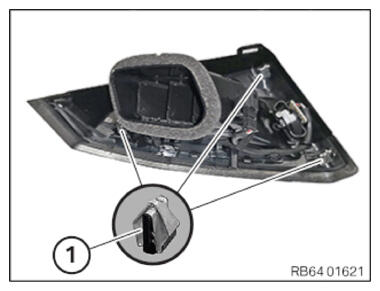

• Check the clamps (1)  for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

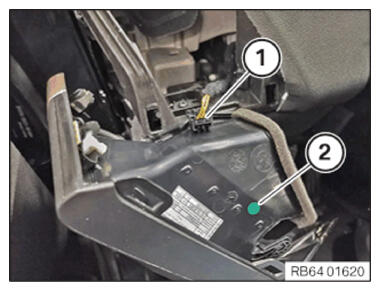

• Position the ventilation grille (2)  .
• Connect connectors (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

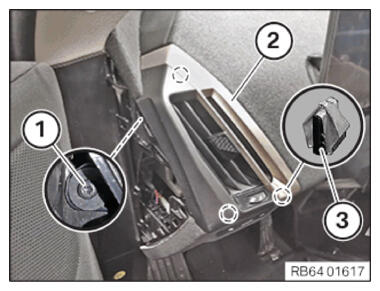

• Position the ventilation grille (2)  correctly and clip it into the clamps (3)  at the marked points.
• Tighten down screw (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SIDE COVER ON THE LEFT DASHBOARD .
