11 12 100 Removing and installing cylinder head: Notes
WARNING:
Working on 12 V electrical system.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
WARNING:
Working on fuel system.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure that the workbay is sufficiently ventilated, e.g. using extraction unit.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
CAUTION:
On releasing high pressure line, fuel may emerge at high speed.
Injury hazard!
Injury hazard!
- Wear suitable personal protective equipment.
- Before performing any installation work, allow cooling system to cool down to less than 40 °C.
- Note warnings on cylinder head cover.
NOTE:
RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS).
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults.
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS).
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults.
- Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.
NOTE:
TECHNICAL INFORMATION
After replacing the motor or cylinder head: Reprogram or encode the digital motor electronics (DME) if necessary.
Read out the vehicle I-level and proceed accordingly.
Be absolutely certain to pay attention to PuMA measure 62634754.
For further information, see the appropriate BMW Parts Catalogue.
After replacing the motor or cylinder head: Reprogram or encode the digital motor electronics (DME) if necessary.
Read out the vehicle I-level and proceed accordingly.
Be absolutely certain to pay attention to PuMA measure 62634754.
For further information, see the appropriate BMW Parts Catalogue.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Preliminary work:
- Disconnect all battery ground leads
- Bring engine compartment lid into service position
- Remove the cover in the left engine compartment
- Remove the right cover in the engine compartment
- Refer to REMOVING THE ACOUSTIC COVER
- Remove both wiper arms
- Remove cowl panel cover
- Refer to REMOVING TRAILING LINK AT SPRING STRUT DOME
- Remove the sound insulation on the bulkhead upper part center
- Remove ACOUSTIC COVER AT REAR
- Refer to REMOVING THE LOWER RIGHT ENGINE BULKHEAD
- Remove ignition coils. Refer to REPLACING IGNITION COILS .
- Remove all spark plugs. Refer to REMOVING/INSTALLING/REPLACING ALL SPARK PLUGS (B58) .
- Refer to REMOVING THE HIGH PRESSURE LINE BETWEEN THE RAIL AND THE HIGH PRESSURE PUMP
- Refer to REMOVING FUEL DELIVERY LINE
- Refer to REMOVING HIGH PRESSURE PUMP
- Refer to REMOVING THE INJECTORS FOR CYLINDERS 1 TO 3
- Refer to REMOVING THE INJECTORS FOR CYLINDERS 4 TO 6
- Refer to REMOVING BOTH ACTUATORS
- Refer to REMOVING INTAKE SILENCER HOUSING
- Refer to REMOVING CLEAN AIR PIPE
- Refer to REMOVING FAN COWL .
- Refer to REMOVING CHARGE AIR LINE
- Refer to REMOVING FRONT ENGINE ENCAPSULATION
- Refer to REMOVING THE LAMBDA OXYGEN SENSOR
- Refer to REMOVING THE OXYGEN SENSOR MONITOR
- Uninstall cover for the DME control unit
- Disconnect the connector from the DME control unit and from the power distribution module (PDM)
- Refer to REMOVING THE DME CONTROL UNIT
- Refer to REMOVING THE INTEGRATED POWER SUPPLY MODULE (PDM)
- Refer to REMOVING THE HOLDER FOR THE DIGITAL MOTOR ELECTRONICS-CONTROL UNIT
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION
- Remove rear underbody protection
- Refer to REMOVING REINFORCEMENT PLATE

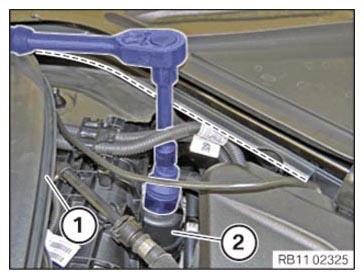

- Drain the engine oil (remove the full-flow oil filter)

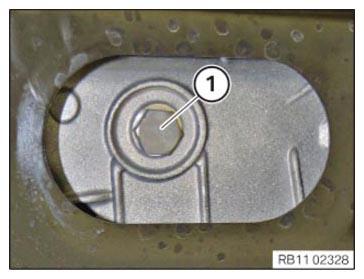

- Re-install oil drain plug (tightening torque: 25 Nm)
- Refer to DRAINING THE COOLANT FROM THE HIGH-TEMPERATURE COOLING SYSTEM
- Refer to DRAINING THE COOLANT FROM THE LOW-TEMPERATURE COOLING SYSTEM
- Refer to REMOVING REINFORCEMENT PLATE
- Refer to REMOVING EXHAUST SYSTEM
- Refer to REMOVING CATALYTIC CONVERTER
- Refer to REMOVING TANK VENT VALVE
- Refer to REMOVING THE INTAKE PLENUM
- Refer to REMOVING THE AUXILIARY COOLANT PUMP
- Refer to REMOVING THE CYLINDER HEAD COVER
- Turn the engine on the vibration damper. Refer to the relevant instructions under the procedure for CHECKING CAMSHAFT TIMING (AUTOMATIC TRANSMISSION) or CHECKING CAMSHAFT TIMING (MANUAL TRANSMISSION) .
- Block the crankshaft in the TDC firing position of the 1st cylinder. Refer to the relevant instructions under the procedure for CHECKING CAMSHAFT TIMING (AUTOMATIC TRANSMISSION) or CHECKING CAMSHAFT TIMING (MANUAL TRANSMISSION) .
- Refer to the relevant instructions for blocking the camshafts under procedure for CHECKING CAMSHAFT TIMING (AUTOMATIC TRANSMISSION) or CHECKING CAMSHAFT TIMING (MANUAL TRANSMISSION) .
- Refer to REMOVING CHAIN TENSIONER
- Refer to RELEASING THE VANOS CENTRAL VALVE
- Refer to REMOVING INTAKE ADJUSTER
- Refer to REMOVING EXHAUST CAMSHAFT ADJUSTER
- Refer to REMOVING THE FRONT SECTION OF THE COOLANT RETURN LINE
- Refer to REMOVING THE REAR SECTION OF THE COOLANT RETURN LINE (FRONT SECTION IS REMOVED)
- Refer to REMOVING THE COOLANT FEED LINE
- Detach oil supply line from the engine block. Refer to REMOVE/INSTALL/SEALING OR REPLACING OIL FEED LINE FOR EXHAUST TURBOCHARGER .
- Refer to REMOVING THE OIL RETURN LINE FOR THE EXHAUST TURBOCHARGER
Follow-up work:
- Refer to INSTALLING THE OIL RETURN LINE FOR THE EXHAUST TURBOCHARGER
- Refer to SECURE THE OIL FEED LINE TO THE ENGINE BLOCK
- Refer to INSTALLING COOLANT FEED LINE
- Refer to INSTALLING THE REAR SECTION OF THE COOLANT RETURN LINE (FRONT SECTION REMOVED)
- Refer to INSTALLING THE FRONT SECTION OF THE COOLANT RETURN LINE
- Refer to INSTALLING EXHAUST CAMSHAFT ADJUSTER
- Refer to INSTALLING THE INTAKE ADJUSTER
- Refer to PRELOAD TIMING CHAIN
- Refer to TIGHTENING THE VANOS CENTRAL VALVE
- Disassemble all special tools
- Crank engine twice. Refer to CHECKING CAMSHAFT TIMING (AUTOMATIC TRANSMISSION) or CHECKING CAMSHAFT TIMING (MANUAL TRANSMISSION)
- Refer to INSTALLING CYLINDER HEAD COVER
- Refer to INSTALLING BOTH ACTUATORS
- Refer to PREPARING THE INJECTORS FOR INSTALLATION
- Refer to INSTALLING THE INJECTORS FOR THE CYLINDERS 4 TO 6
- Refer to INSTALLING THE INJECTORS FOR THE CYLINDERS 1 TO 3
- Refer to PREPARING FOR THE INSTALLATION OF THE HIGH PRESSURE PUMP
- Refer to INSTALLING HIGH PRESSURE PUMP
- Refer to INSTALLING FUEL DELIVERY LINE
- Refer to INSTALLING THE HIGH-PRESSURE LINE BETWEEN THE HIGH-PRESSURE RAIL AND THE HIGH-PRESSURE PUMP
- Refer to INSTALLING ALL SPARK PLUGS
- Refer to INSTALLING THE IGNITION COILS
- Refer to INSTALLING THE AUXILIARY COOLANT PUMP
- Refer to INSTALLING THE INTAKE PLENUM
- Refer to INSTALLING THE TANK VENT VALVE
- Refer to INSTALLING THE HOLDER FOR THE DIGITAL MOTOR ELECTRONICS-CONTROL UNIT
- Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM)
- Refer to INSTALLING THE DME CONTROL UNIT
- Connect the connector to the DME control unit and the power distribution box (PDM)
- Install cover for the DME control unit
- Refer to INSTALLING CATALYTIC CONVERTER
- Refer to INSTALLING EXHAUST SYSTEM
- Refer to INSTALLING REINFORCEMENT PLATE
- Install the oxygen sensor monitor. Tightening torque: 50 Nm.
- Install Lambda oxygen sensor. Tightening torque: 50 Nm.
- Refer to INSTALLING FRONT ENGINE ENCAPSULATION
- Refer to CONNECT THE COOLANT HOSE TO THE RADIATOR OF THE LOW-TEMPERATURE COOLANT CIRCUIT
- Refer to CONNECT THE COOLANT HOSE TO THE RADIATOR
- Refer to INSTALLING CHARGE AIR LINE
- Refer to INSTALLING FAN COWL
- Refer to INSTALLING CLEAN AIR PIPE
- Refer to INSTALLING INTAKE SILENCER HOUSING
- Refer to INSTALLING ACOUSTIC COVER AT REAR
- Refer to Install the lower right engine bulkhead
- Refer to Install tension strut on spring strut dome.
- Refer to Attaching cowl panel cover
- Refer to Install both wiper arms
- Checking the angle of attack of the wiper arms on the left and right
- Refer to Installing the sound insulation on the bulkhead upper part center
- Refer to Installing the cover in the engine compartment on the left
- Refer to Installing the cover in the engine compartment on the right
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLER DEVICE
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLER DEVICE
- Refer to Topping up the engine oil
- Disconnecting all battery ground leads
- Refer to Connecting the diagnostic system for possible integration level encoding and programming
- Refer to BLEEDING THE LOW-TEMPERATURE COOLING SYSTEM
- Refer to BLEEDING THE HIGH-TEMPERATURE COOLANT SYSTEM
- Refer to INSTALLING ACOUSTIC COVER
- Refer to INSTALLING REINFORCEMENT PLATE
- Refer to Installing underbody protection at rear
- Refer to Installing the front underbody protection
- Refer to Take hood out of the service position
- Refer to Check engine oil level
