REP-TAT-P-3110-01 Remove reinforcement plate

NOTE: TECHNICAL INFORMATION
Driving without a bracing plate is not permitted.

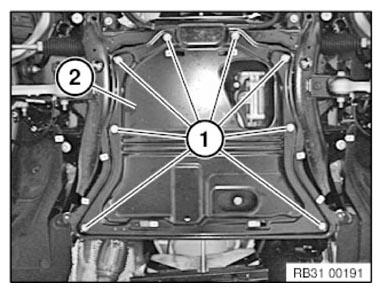

Version 1:
Loosen screws (1).

Remove the bracing plate (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Version 2:
Loosen screws (1).

Remove the bracing plate (2).

Courtesy of BMW OF NORTH AMERICA, INC.
