REP-TAT-P-1178-25 Replacing the Lambda oxygen sensor

Removing the lambda oxygen sensor

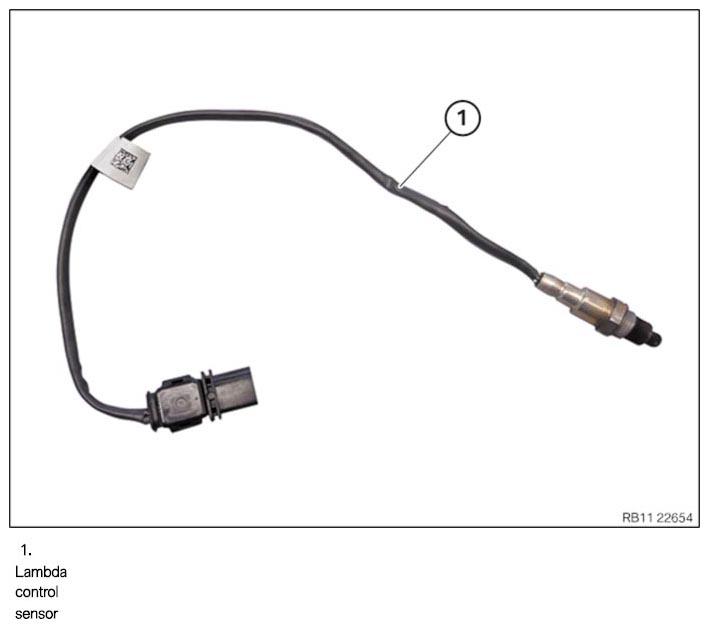

Lambda control sensor

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

NOTE: RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.

Do not pull on wires when disconnecting connectors and plug connections.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The cable of the Lambda oxygen sensor is black. The installation location of the Lambda oxygen sensor is in front of the catalytic converter.

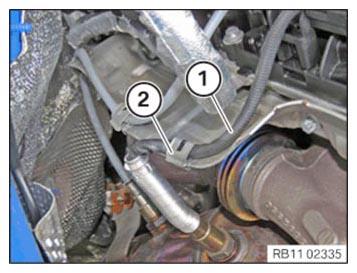

Detach the cable (1) from the clamp (2).

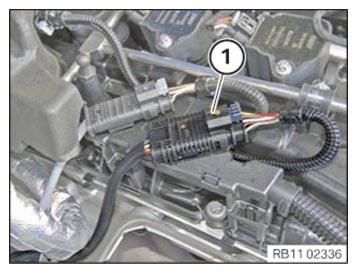

Unlock and disconnect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

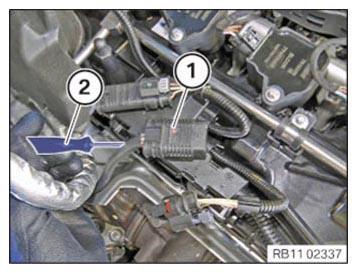

Unlock the connector (1) with the screwdriver (2) and detach it off from the carrier plate.

Courtesy of BMW OF NORTH AMERICA, INC.

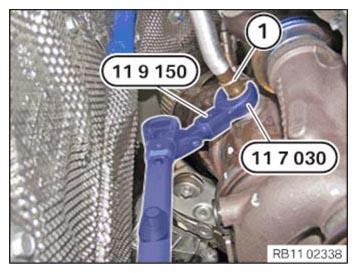

Release the Lambda oxygen sensor (1) with the special tools 0 493 751 (11 9 150) and 0 491 075 (11 7 030) .
Remove the Lambda oxygen sensor (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing Lambda oxygen sensor

NOTE: TECHNICAL INFORMATION
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: OVERVIEW OF CONSUMABLES

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES

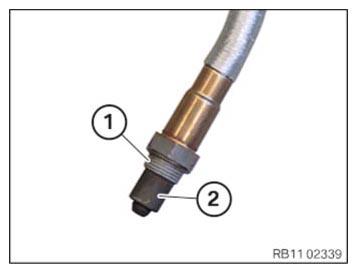

(1) = Thread
(2) = Sensor ceramics

NOTE: The cable of the Lambda oxygen sensor is black. The installation location of the Lambda oxygen sensor is in front of the catalytic converter.

Screw in the Lambda oxygen sensor (1).
Tighten the Lambda oxygen sensor (1) with the special tools 0 493 751 (11 9 150) and 0 491 075 (11 7 030) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTEN TORQUES SPECIFICATIONS

Lambda oxygen sensor on catalytic converter
M18X1.5	Tightening torque	50 Nm

Connect connector (1) and attach it to the carrier plate.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the cable (1) in the clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.
