REP-TAT-P-1711-01 Remove fan cowl

Prerequisite

Ignition is switched off.

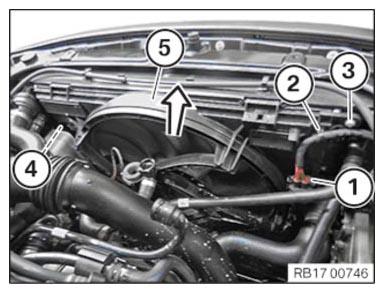

• Unlock and loosen connector (1).
• Loosen clamp (2).
• Loosen screw (3).
• Unlock lock (4).
• Guide out fan cowl (5) in direction of arrow and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
